Sandvik Coromant A10R-SDUPL 2-EX CoroTurn™ 111 boring bar for back boring

Name: Sandvik Coromant A10R-SDUPL 2-EX CoroTurn™ 111 boring bar for back boring
SKU: 5721353
Price: 2190.75 ZAR
Availability: OutOfStock

Be the first to review this product

R 2 190,75 inc. vat

Out of stock

SKU

5721353

CoroTurn® 111 boring bar for back boring

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 111 boring bar for back boring

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	15.875mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	203.2mm
BD - Body Diameter	15.875mm
TQ - Torque	0.9Nm
WT - Weight Of Item	255g
OAL - Overall Length	215.3mm
OHX - Maximum Overhang	63.5mm
LSC - Clamping Length	179.4mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	27deg
DMIN - Minimum Bore Diameter	21.6mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	23.8125mm
WF - Functional Width	12.3444mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	1deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
H - Shank Height	14.2748mm
LPR - Protruding Length	215.3mm
ORDCODE	A10R-SDUPL 2-EX
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_R6250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-04-06 23:01:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_DP0702_1
Hand	L

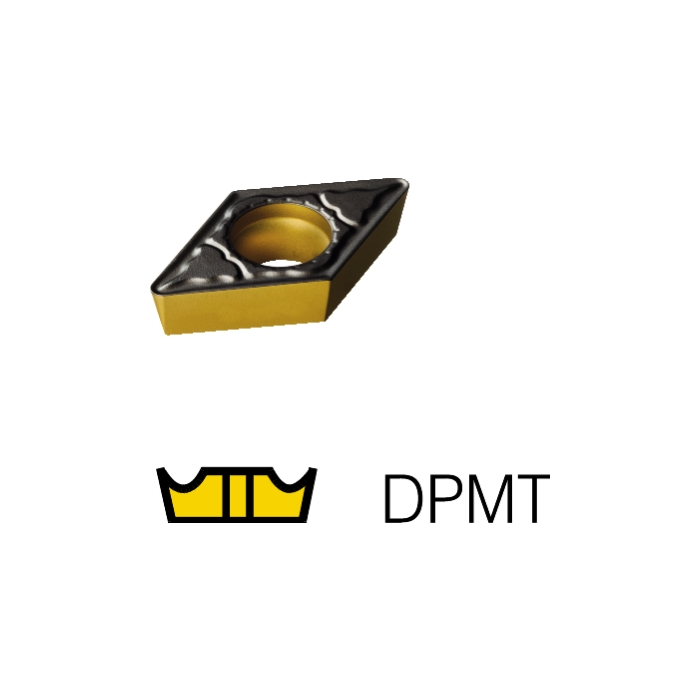

MIID - Master Insert Identification	DPMT 07 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	D
SSC - Insert Seat Size Code	07
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
