Sandvik Coromant A16R-SDUPL 07-EX CoroTurn™ 111 boring bar for back boring

R 2 190,75 inc. vat
Out of stock
SKU
5721565
CoroTurn® 111 boring bar for back boring
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 boring bar for back boring
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 200mm
BD - Body Diameter 16mm
TQ - Torque 0.9Nm
WT - Weight Of Item 0.259kg
OAL - Overall Length 212.1mm
OHX - Maximum Overhang 64mm
LSC - Clamping Length 176mm
KAPR - Tool Cutting Edge Angle 93deg
RMPX - Maximum Ramping Angle 27deg
DMIN - Minimum Bore Diameter 22mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 24mm
WF - Functional Width 13mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 6deg
LAMS - Inclination Angle 1deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.396875mm
Insert Thickness 2.38125mm
H - Shank Height 15mm
LPR - Protruding Length 212.1mm
ORDCODE A16R-SDUPL 07-EX
ADINTMS - Adaptive Interface Machine Direction M_CYLF3_G1600_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-13 14:39:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_DP0702_1
Hand L

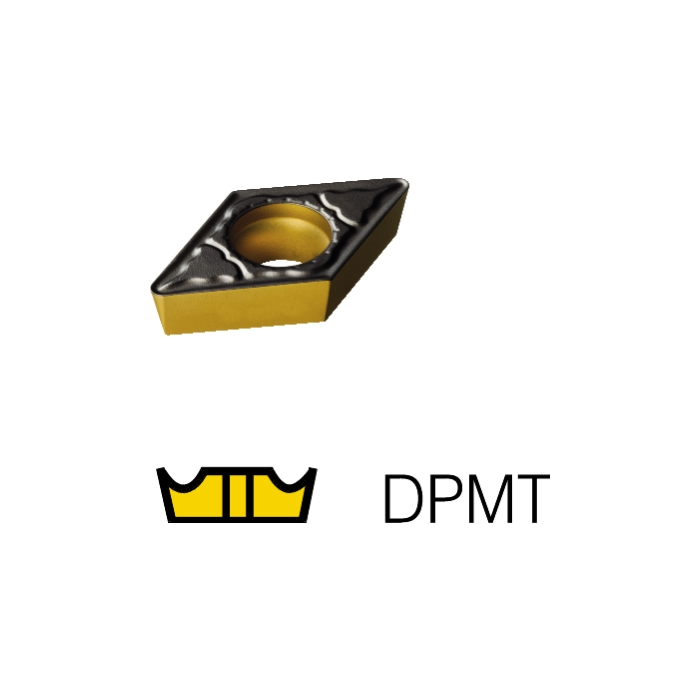

MIID - Master Insert Identification DPMT 07 02 04
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code D
SSC - Insert Seat Size Code 07
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
