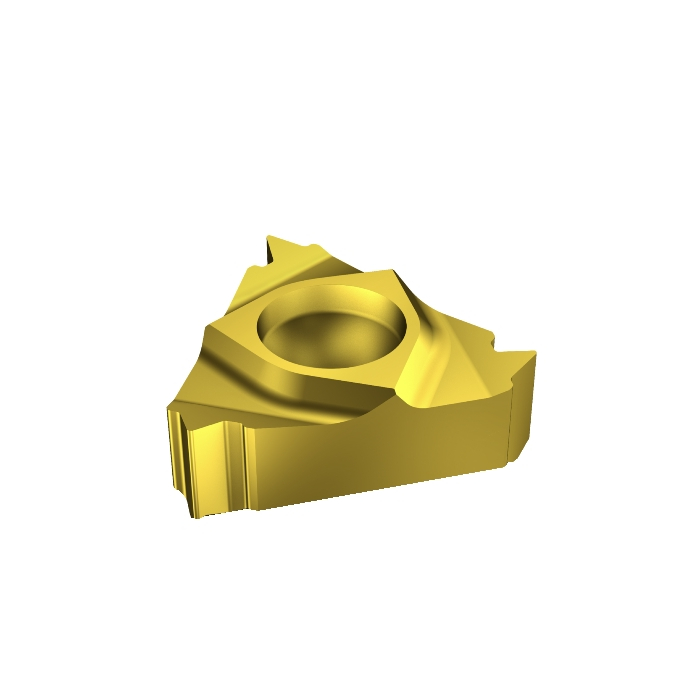

Sandvik Coromant L166.0L-11UN01-160 1020 T-Max™ U-Lock insert for thread turning

Name: Sandvik Coromant L166.0L-11UN01-160 1020 T-Max™ U-Lock insert for thread turning
SKU: 5734452
Price: 424.35 ZAR
Availability: OutOfStock

Be the first to review this product

R 424,35 inc. vat

Out of stock

SKU

5734452

T-Max® U-Lock insert for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® U-Lock insert for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	1.7g
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	6.35mm
Insert Thickness	3.175mm
D1 - Fixing Hole Diameter	2.8mm
HA - Theoretical Thread Height	1mm
HB - Thread Height Difference	0.09mm
TPI - Threads Per Inch	16
PDX - Profile Distance Ex	1mm
PDY - Profile Distance Ey	0.68mm
ORDCODE	L166.0L-11UN01-160 1020
CHANGEDATE	2022-06-23 10:02:00.000
STDNO - Standard Number	ISO 5864-1978
Hand	L
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	11
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_TBI11L_1
Grade	1020
COATING	PVD TiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	A
THFT - Thread Form Type	UN60
TPT - Thread Profile Type	F
TTP - Thread Type	INT
TCTR - Thread Tolerance Class	2B
CEDC - Cutting Edge Count	3
NT - Tooth Count	1
