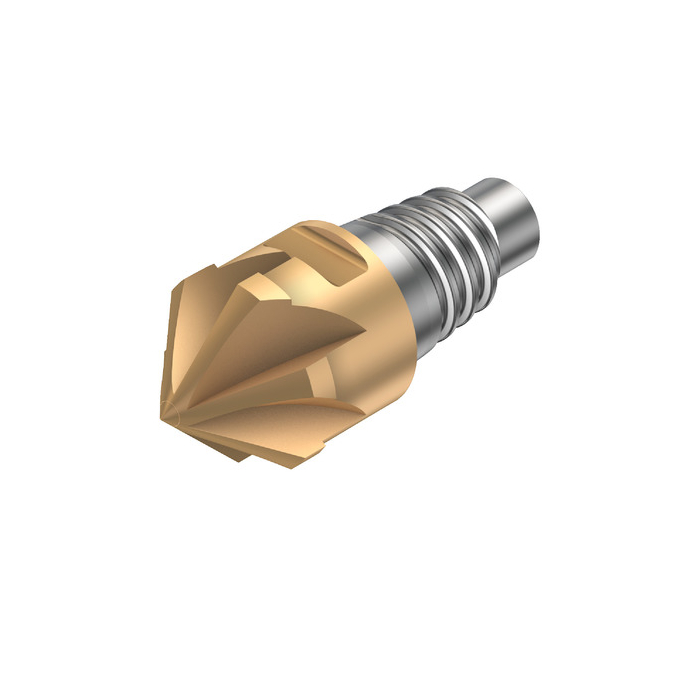

Sandvik Coromant 316-16CM800-16045G 1030 CoroMill™ 316 solid carbide head for chamfer milling

R 3 211,95 inc. vat
Out of stock
SKU
5758499
CoroMill® 316 solid carbide head for chamfer milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for chamfer milling
More Information
DCON - Connection Diameter 15.5mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 16.7mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.058kg
OAL - Overall Length 35.7mm
OHX - Maximum Overhang 16.7mm
KAPR - Tool Cutting Edge Angle 45deg
APMX - Depth Of Cut Maximum 6mm
DC - Cutting Diameter 4mm
DN - Neck Diameter 15.5mm
GAMF - Radial Rake Angle 1deg
GAMP - Axial Rake Angle 0deg
DCX - Maximum Cutting Diameter 16mm
ORDCODE 316-16CM800-16045G 1030
ADINTMS - Adaptive Interface Machine Direction M_SAT01_A0160_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-21 01:06:00.000
Hand R
Grade 1030
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation STRAIGHT
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 8
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
