Sandvik Coromant N331.32-127S40KMQ CoroMill™ 331 adjustable full side and face disc milling cutter

Name: Sandvik Coromant N331.32-127S40KMQ CoroMill™ 331 adjustable full side and face disc milling cutter
SKU: 5737680
Price: 26631.70 ZAR
Availability: OutOfStock

Be the first to review this product

R 26 631,70 inc. vat

Out of stock

SKU

5737680

CoroMill® 331 adjustable full side and face disc milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 331 adjustable full side and face disc milling cutter

More Information

More Information
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	17.25mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	124001/min
WT - Weight Of Item	0.857kg
OAL - Overall Length	18.5mm
OHX - Maximum Overhang	17.25mm
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	16mm
RE - Corner Radius	8mm
Insert Thickness	6.35mm
CW - Cutting Width	16mm
CDX - Cutting Depth Maximum	35mm
APMX - Depth Of Cut Maximum	16mm
DC - Cutting Diameter	127mm
DCF - Cutting Diameter Face Contact	111mm
DCX - Maximum Cutting Diameter	127mm
DHUB - Hub Diameter	55mm
THUB - Hub Thickness	18.5mm
PSW - Premachined Slot Width	0mm
ORDCODE	N331.32-127S40KMQ
ADINTMS - Adaptive Interface Machine Direction	M_FDA21_G4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 13:39:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_RC1606M_1
Hand	N

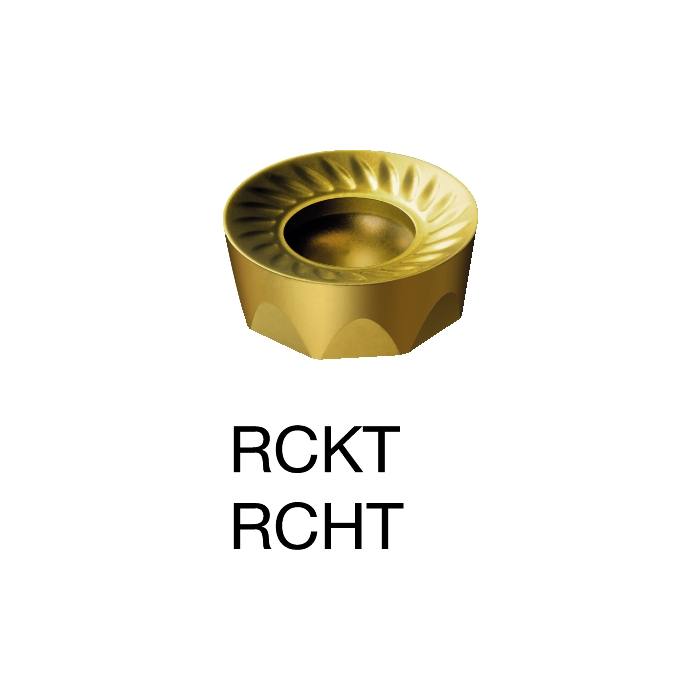

MIID - Master Insert Identification	RCKT 16 06 M0
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	8
ZEFP - Peripheral Effective Cutting Edge Count	8
DRVCT - Drive Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
