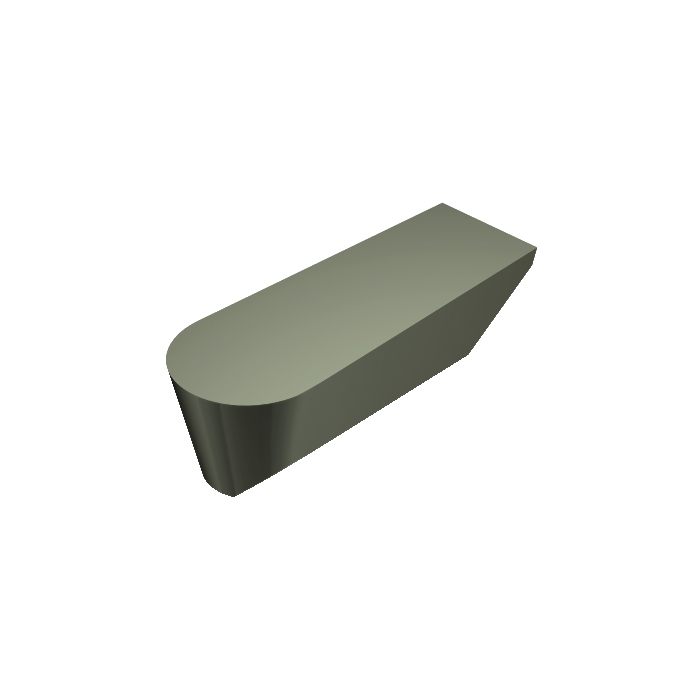

Sandvik Coromant 150.23 0317 16E 670 T-Max™ insert for profiling
R 1 078,70
inc. vat
In stock
SKU
5757178
T-Max® insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® insert for profiling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.5g |
| RMPX - Maximum Ramping Angle | 90deg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 11deg |
| RE - Corner Radius | 1.59mm |
| Insert Thickness | 4.74mm |
| CW - Cutting Width | 3.175mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.025mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.025mm |
| RETOLL - Corner Radius Lower Tolerance | -0.1mm |
| RETOLU - Corner Radius Upper Tolerance | 0.1mm |
| ORDCODE | 150.23 0317 16E 670 |
| CHANGEDATE | 2022-06-23 11:34:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SSC - Insert Seat Size Code | 1 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CA1_1 |
| Grade | 670 |
| SUBSTRATE | CR |
| CBMD - Chip Breaker Manufacturer's Designation | E |
| CEDC - Cutting Edge Count | 1 |
