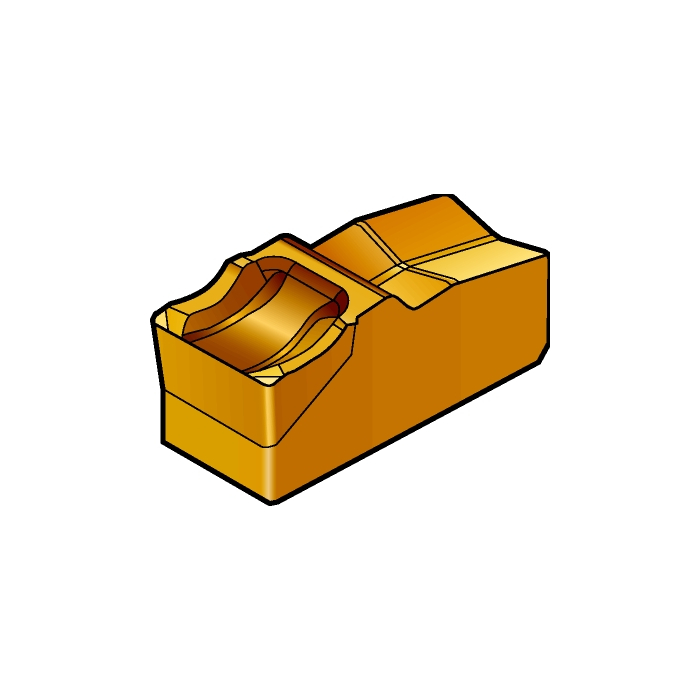

Sandvik Coromant 151.2-25-25 T-Max™ Q-Cut blade for parting
R 2 024,00
inc. vat
Out of stock
SKU
5756994
T-Max® Q-Cut blade for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut blade for parting
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 150mm |
| WT - Weight Of Item | 0.087kg |
| OAL - Overall Length | 150mm |
| OHX - Maximum Overhang | 61mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 2.25mm |
| HF - Functional Height | 25mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 6.787mm |
| H - Shank Height | 31.9mm |
| CW - Cutting Width | 2.5mm |
| CDX - Cutting Depth Maximum | 60mm |
| ORDCODE | 151.2-25-25 |
| ADINTMS - Adaptive Interface Machine Direction | M_PMC012_C0250_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-02 01:04:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CB2G25_1 |
| Hand | N |
| MIID - Master Insert Identification | N151.2-250- 5E |
| SSC - Insert Seat Size Code | 25 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
