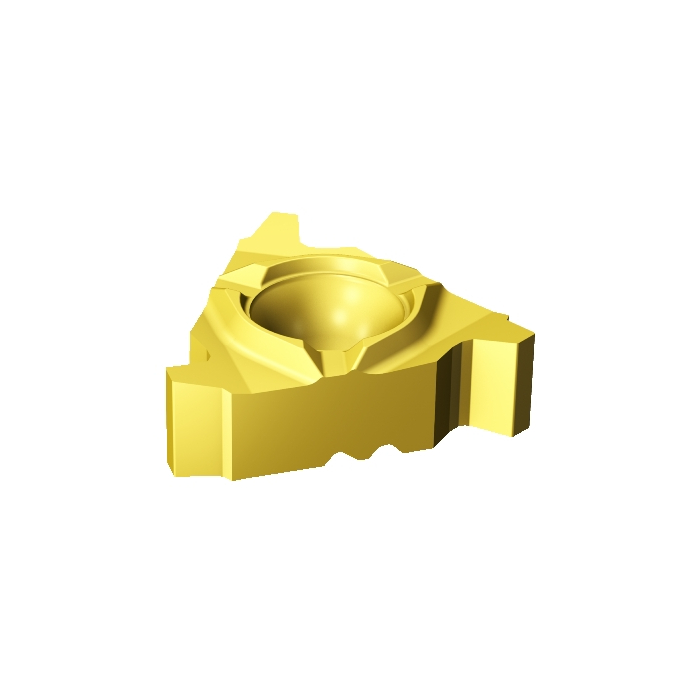

Sandvik Coromant 266LL-22AC01F060E 1020 CoroThread™ 266 insert for thread turning
Next
Sandvik Coromant 266LL-22AC01F040E 1020 CoroThread™ 266 insert for thread turning
Previous
![Sandvik Coromant 266LL-22AC01F060E 1020 CoroThread™ 266 insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/52111d4ac/sandvik-coromant-266ll-22ac01f060e-1020-corothreadtm-266-insert-for-thread-turning.jpg)
![Sandvik Coromant 266LL-22AC01F040E 1020 CoroThread™ 266 insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/521076b9a/sandvik-coromant-266ll-22ac01f040e-1020-corothreadtm-266-insert-for-thread-turning.jpg)
R 887,80
inc. vat
In stock
SKU
5757768
CoroThread® 266 insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroThread® 266 insert for thread turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.012kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
Insert Thickness | 5.5626mm |
D1 - Fixing Hole Diameter | 5.7mm |
HA - Theoretical Thread Height | 6.22mm |
HB - Thread Height Difference | 3.37mm |
CF - Spot Chamfer | 1.74mm |
TPI - Threads Per Inch | 5 |
PDX - Profile Distance Ex | 2mm |
PDY - Profile Distance Ey | 0.964mm |
ORDCODE | 266LL-22AC01F050E 1020 |
CHANGEDATE | 2022-06-23 11:35:00.000 |
STDNO - Standard Number | ANSI B1.5-1988 |
Hand | L |
IFS - Insert Mounting Style Code | 8 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 22 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TCI22L_1 |
Grade | 1020 |
COATING | PVD TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | F |
THFT - Thread Form Type | AC29 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
TCTR - Thread Tolerance Class | 2G |
CEDC - Cutting Edge Count | 3 |
NT - Tooth Count | 1 |
