Sandvik Coromant 266RFG-4040-27 CoroThread™ 266 shank tool for thread turning

Name: Sandvik Coromant 266RFG-4040-27 CoroThread™ 266 shank tool for thread turning
SKU: 5757771
Price: 5108.30 ZAR
Availability: InStock

Be the first to review this product

R 5 108,30 inc. vat

In stock

SKU

5757771

CoroThread® 266 shank tool for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroThread® 266 shank tool for thread turning

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	250mm
TQ - Torque	7.5Nm
WT - Weight Of Item	3.005kg
OAL - Overall Length	250mm
OHX - Maximum Overhang	34.6mm
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	50mm
HF - Functional Height	40mm
GAMO - Orthogonal Rake Angle	-10deg
LAMS - Inclination Angle	-1deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	15.875mm
Insert Thickness	7mm
H - Shank Height	40mm
B - Shank Width	40mm
ALP - Axial Clearance Angle	-10deg
THCA - Thread Helix Correction Angle	1deg
ORDCODE	266RFG-4040-27
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A4040_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-05-16 17:14:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TCE27L_2
Hand	R

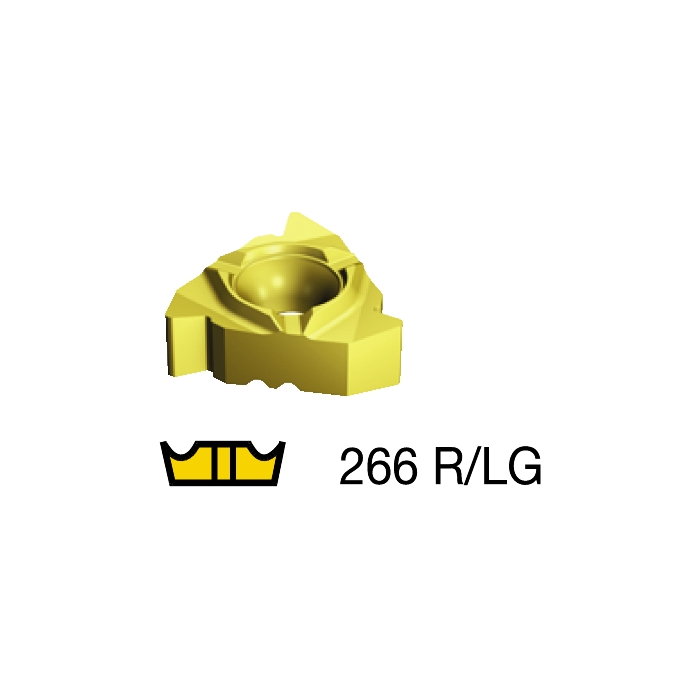

MIID - Master Insert Identification	266.RG-27..
IFS - Insert Mounting Style Code	8
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	27
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
