Sandvik Coromant 266RKF-D12-4-R CoroThread™ 266 boring bar for thread turning

Name: Sandvik Coromant 266RKF-D12-4-R CoroThread™ 266 boring bar for thread turning
SKU: 5961389
Price: 3573.05 ZAR
Availability: InStock

Be the first to review this product

R 3 573,05 inc. vat

In stock

SKU

5961389

CoroThread® 266 boring bar for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroThread® 266 boring bar for thread turning

More Information

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	19.05mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	254mm
BD - Body Diameter	19.05mm
TQ - Torque	5Nm
WT - Weight Of Item	0.487kg
OAL - Overall Length	254mm
OHX - Maximum Overhang	57.15mm
LSC - Clamping Length	206.375mm
DMIN - Minimum Bore Diameter	25mm
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	34.2mm
WF - Functional Width	15mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-15deg
LAMS - Inclination Angle	-2deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	12.7mm
Insert Thickness	5.5626mm
LU - Usable Length	47.625mm
ALP - Axial Clearance Angle	-15deg
THCA - Thread Helix Correction Angle	2deg
ORDCODE	266RKF-D12-4-R
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R7500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:09:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TCI22L_4
Hand	R

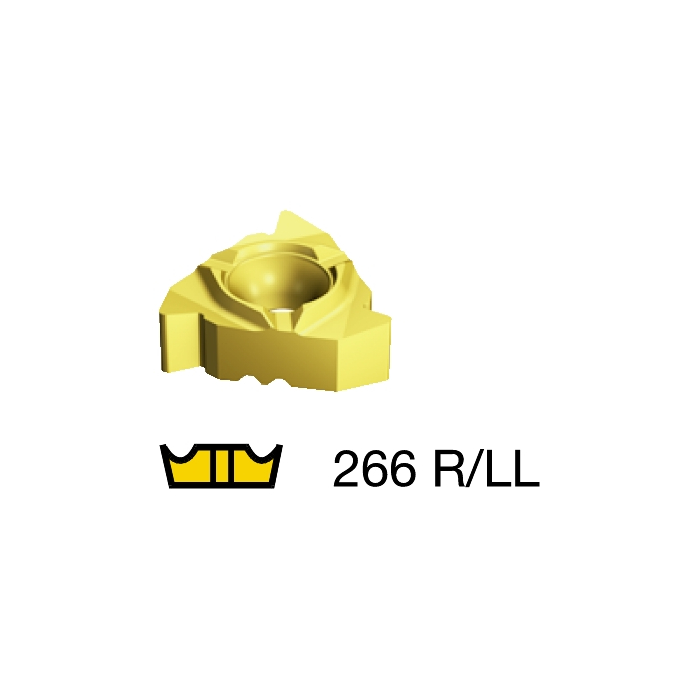

MIID - Master Insert Identification	266.RL-22..
IFS - Insert Mounting Style Code	8
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	22
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
