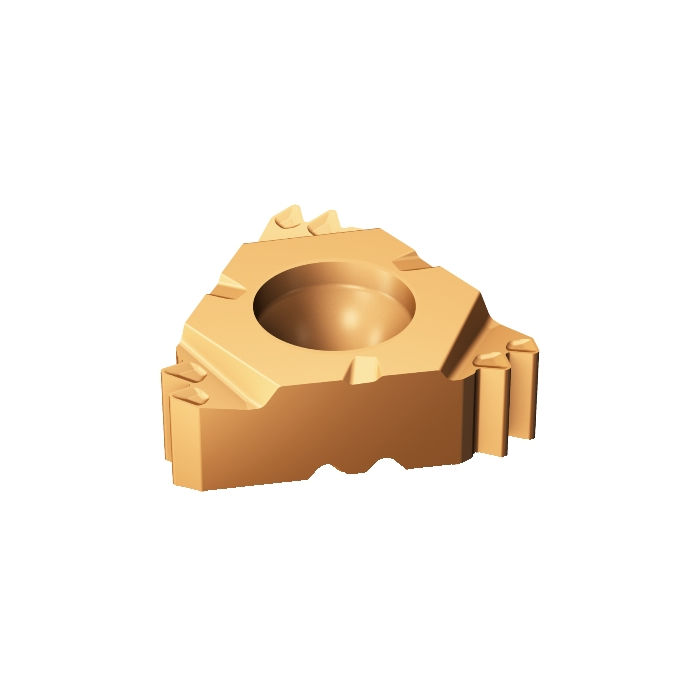

Sandvik Coromant 266RG-16UN02A160M 1125 CoroThread™ 266 insert for thread turning
Next
Sandvik Coromant 266RG-16UN02A140M 1125 CoroThread™ 266 insert for thread turning
Previous
![Sandvik Coromant 266RG-16UN02A160M 1125 CoroThread™ 266 insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/522454442/sandvik-coromant-266rg-16un02a160m-1125-corothreadtm-266-insert-for-thread-turning.jpg)
![Sandvik Coromant 266RG-16UN02A140M 1125 CoroThread™ 266 insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/52243a0f1/sandvik-coromant-266rg-16un02a140m-1125-corothreadtm-266-insert-for-thread-turning.jpg)
R 711,85
inc. vat
In stock
SKU
5757948
CoroThread® 266 insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroThread® 266 insert for thread turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 4.1g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 9.525mm |
Insert Thickness | 3.96875mm |
D1 - Fixing Hole Diameter | 4.4mm |
HA - Theoretical Thread Height | 1.43mm |
HB - Thread Height Difference | 0.25mm |
TPI - Threads Per Inch | 14 |
PDX - Profile Distance Ex | 2.7mm |
PDY - Profile Distance Ey | 1.689mm |
ORDCODE | 266RL-16WH02A140M 1125 |
CHANGEDATE | 2021-12-17 20:05:00.000 |
STDNO - Standard Number | BS-84-1957 |
Hand | R |
IFS - Insert Mounting Style Code | 8 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 16 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TCI16R_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | A |
THFT - Thread Form Type | WH55 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
TCTR - Thread Tolerance Class | CLASSA |
CEDC - Cutting Edge Count | 3 |
NT - Tooth Count | 2 |
