Sandvik Coromant 392.41005C8040060 HSK to arbor adaptor
R 5 156,60
inc. vat
Out of stock
SKU
7079900

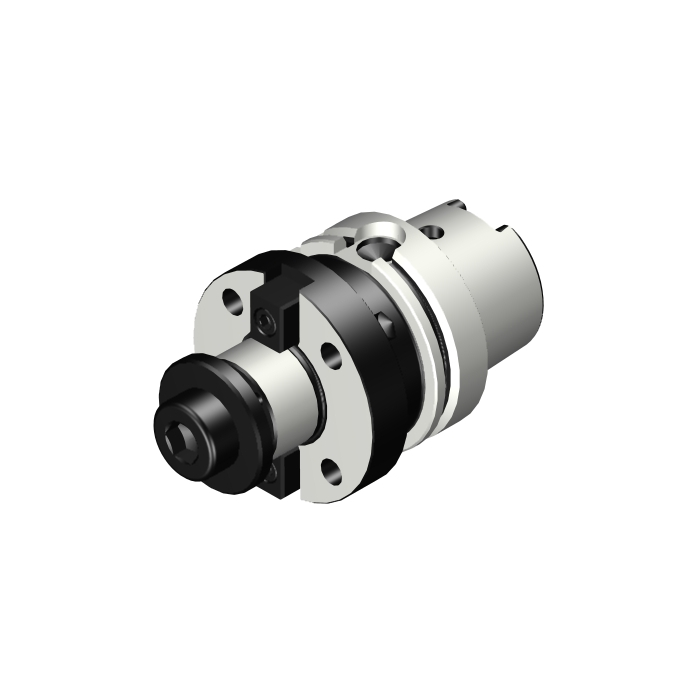

HSK to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to arbor adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 60.012mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 60mm |
| BD - Body Diameter | 87mm |
| LB - Body Length | 60mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 300Nm |
| RPMX - Rotational Speed Maximum | 140001/min |
| WT - Weight Of Item | 2.724kg |
| OAL - Overall Length | 123mm |
| OHX - Maximum Overhang | 60mm |
| DBC - Diameter Bolt Circle | 66.7mm |
| ORDCODE | 392.41005C8040060 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0800_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA1ABC_G4000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 4 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-03 01:07:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
