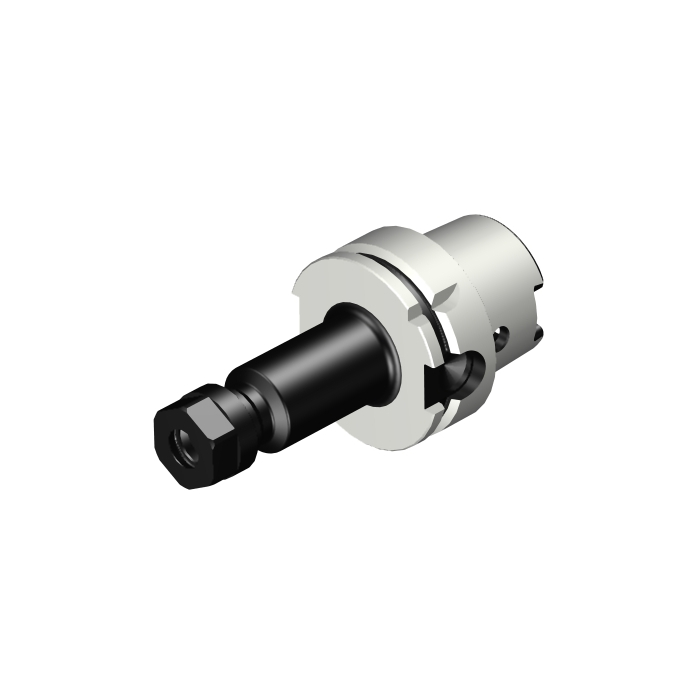

Sandvik Coromant 392.41014-63 16 100 HSK to ER collet chuck
R 3 722,55
inc. vat
In stock
SKU
7079907
HSK to ER collet chuck
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to ER collet chuck
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 16mm |
| DCON - Connection Diameter | 17mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 89.4mm |
| BD - Body Diameter | 63mm |
| LB - Body Length | 100mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 205001/min |
| WT - Weight Of Item | 905g |
| OAL - Overall Length | 132mm |
| OHX - Maximum Overhang | 89.4mm |
| ORDCODE | 392.41014-63 16 100 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CLTERB_C0160_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-20 08:21:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
