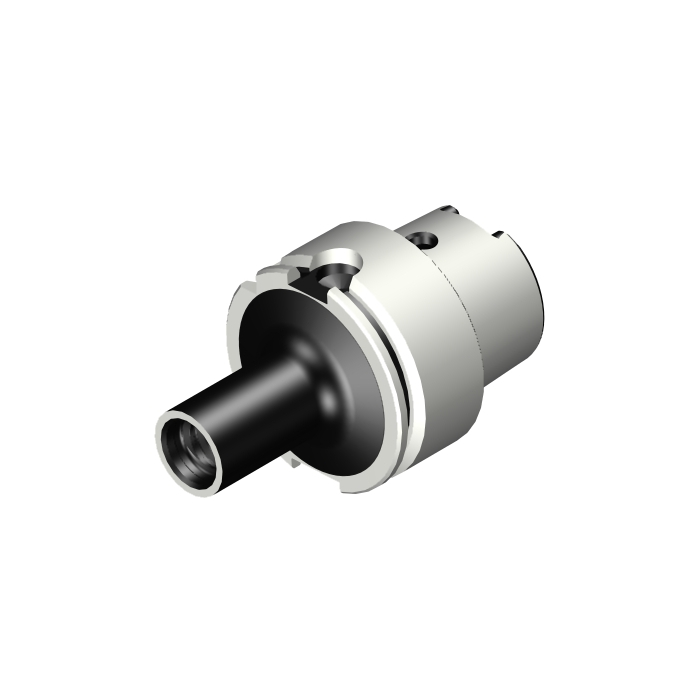

Sandvik Coromant 392.410EH-40 16 048 HSK to Coromant EH adaptor
R 6 172,05
inc. vat
Out of stock
SKU
6229008
HSK to Coromant EH adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to Coromant EH adaptor
| CP - Coolant Pressure | 10000000Pa |
|---|---|
| DFC - Functional Diameter | 30.007mm |
| DCON - Connection Diameter | 15.4mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 48mm |
| BD - Body Diameter | 40mm |
| LB - Body Length | 48mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 30Nm |
| RPMX - Rotational Speed Maximum | 300001/min |
| WT - Weight Of Item | 0.226kg |
| OAL - Overall Length | 68mm |
| OHX - Maximum Overhang | 48mm |
| ORDCODE | 392.410EH-40 16 048 |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0400_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SAT01_A0160_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-23 06:53:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
