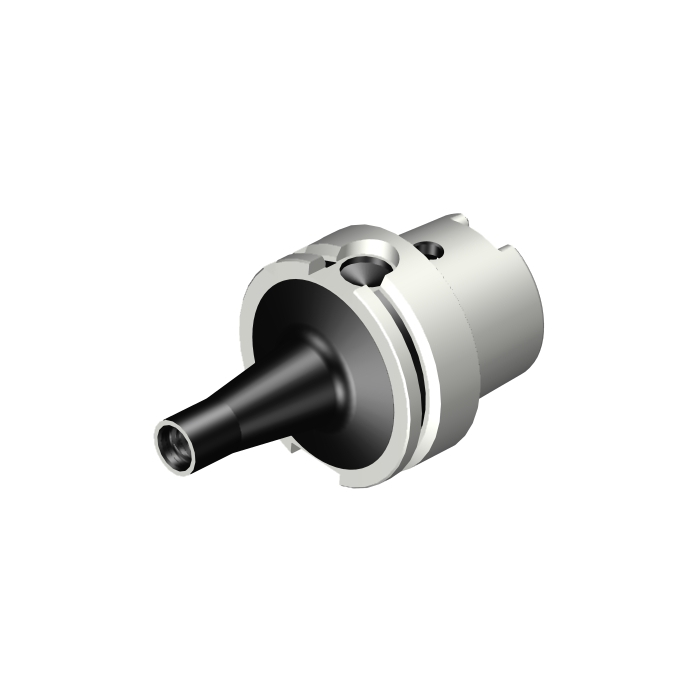

Sandvik Coromant 392.410EH-63 20 091 HSK to Coromant EH adaptor
Next
Sandvik Coromant 392.410EH-63 12 068 HSK to Coromant EH adaptor
Previous
![Sandvik Coromant 392.410EH-63 20 091 HSK to Coromant EH adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/54844a8ea/sandvik-coromant-392-410eh-63-20-091-hsk-to-coromant-eh-adaptor.jpg)
![Sandvik Coromant 392.410EH-63 12 068 HSK to Coromant EH adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/54842660b/sandvik-coromant-392-410eh-63-12-068-hsk-to-coromant-eh-adaptor.jpg)
R 6 820,65
inc. vat
In stock
SKU
6048655
HSK to Coromant EH adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to Coromant EH adaptor
CP - Coolant Pressure | 10000000Pa |
---|---|
DFC - Functional Diameter | 48.01mm |
DCON - Connection Diameter | 15.4mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 78mm |
BD - Body Diameter | 63mm |
LB - Body Length | 78mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 30Nm |
RPMX - Rotational Speed Maximum | 205001/min |
WT - Weight Of Item | 761g |
OAL - Overall Length | 110mm |
OHX - Maximum Overhang | 78mm |
ORDCODE | 392.410EH-63 16 078 |
ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0630_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SAT01_A0160_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-08 12:47:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | DIN69893-1 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
