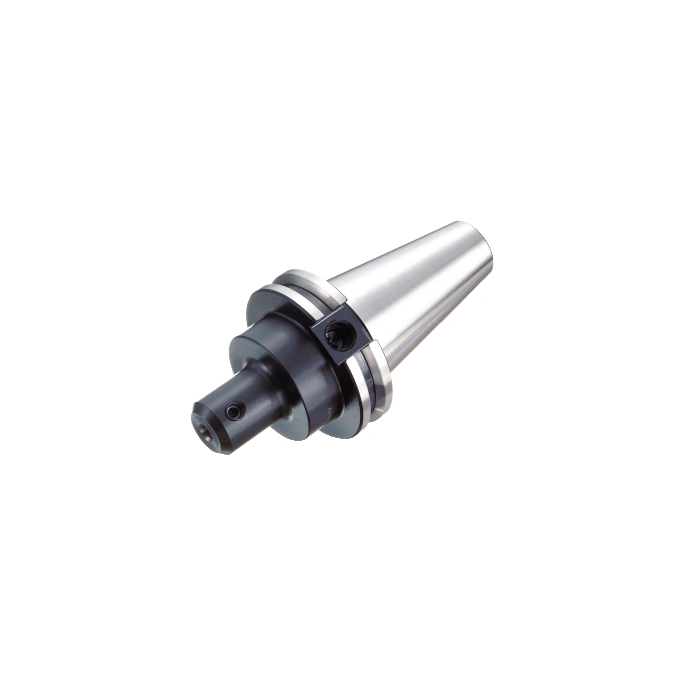

Sandvik Coromant 392.45520-50 32 100 CAT-V to Weldon adaptor
Next
Sandvik Coromant 392.45520-50 20 095 CAT-V to Weldon adaptor
Previous
![Sandvik Coromant 392.45520-50 32 100 CAT-V to Weldon adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/525353bab/sandvik-coromant-392-45520-50-32-100-cat-v-to-weldon-adaptor.jpg)
![Sandvik Coromant 392.45520-50 20 095 CAT-V to Weldon adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/5253322aa/sandvik-coromant-392-45520-50-20-095-cat-v-to-weldon-adaptor.jpg)
R 4 965,70
inc. vat
In stock
SKU
5759993
CAT-V to Weldon adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CAT-V to Weldon adaptor
CP - Coolant Pressure | 2000000Pa |
---|---|
DFC - Functional Diameter | 69.85mm |
DCON - Connection Diameter | 25mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 101.6mm |
BD - Body Diameter | 98.4mm |
LB - Body Length | 101.6mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 25Nm |
RPMX - Rotational Speed Maximum | 120001/min |
WT - Weight Of Item | 3.841kg |
OAL - Overall Length | 203.4mm |
OHX - Maximum Overhang | 101.6mm |
ORDCODE | 392.45520-50 25 100 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG37_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLW_G2500_1 |
CNSC - Coolant Entry Style Code | 7 |
CXSC - Coolant Exit Style Code | 1 |
CRKS - Connection Retention Knob Thread Size | 1"-8 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-20 22:32:00.000 |
STDLET - Standard Letter | AD/B |
STDNO - Standard Number | ASME B5.50 |
DPC - Damping Property | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
