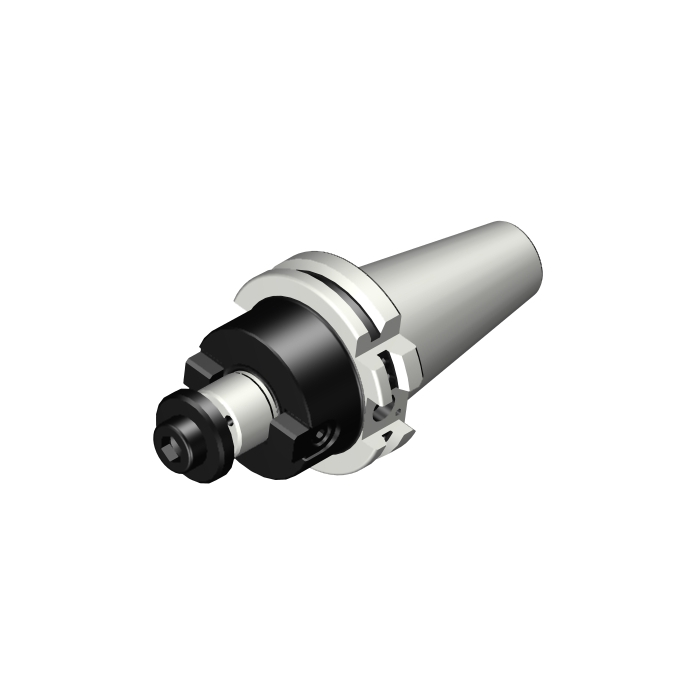

Sandvik Coromant 392.54005C4027050 BIG-PLUS ISO to arbor adaptor
Next
Sandvik Coromant 392.54005C4016045 BIG-PLUS ISO to arbor adaptor
Previous
![Sandvik Coromant 392.54005C4027050 BIG-PLUS ISO to arbor adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/552650271/sandvik-coromant-392-54005c4027050-big-plus-iso-to-arbor-adaptor.jpg)
![Sandvik Coromant 392.54005C4016045 BIG-PLUS ISO to arbor adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/55263f506/sandvik-coromant-392-54005c4016045-big-plus-iso-to-arbor-adaptor.jpg)
R 5 620,05
inc. vat
In stock
SKU
6078790
BIG-PLUS ISO to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS ISO to arbor adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 44.45mm |
DCON - Connection Diameter | 22mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 40mm |
BD - Body Diameter | 63.5mm |
LB - Body Length | 40mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 45Nm |
RPMX - Rotational Speed Maximum | 180001/min |
WT - Weight Of Item | 1.164kg |
OAL - Overall Length | 108.4mm |
OHX - Maximum Overhang | 40mm |
ORDCODE | 392.54005C4022040 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG17BP_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_FDA1AB1_G2200_1 |
CNSC - Coolant Entry Style Code | 7 |
CXSC - Coolant Exit Style Code | 4 |
CRKS - Connection Retention Knob Thread Size | M16 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-14 09:09:00.000 |
STDLET - Standard Letter | AD/B |
STDNO - Standard Number | BIG-PLUS |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
