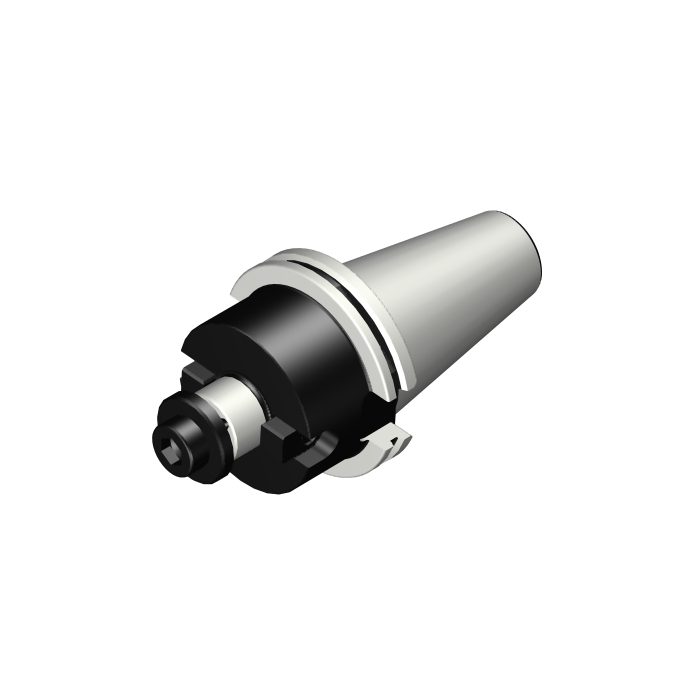

Sandvik Coromant 392.54005C5032055 BIG-PLUS ISO to arbor adaptor
R 7 968,35
inc. vat
In stock
SKU
7079772
BIG-PLUS ISO to arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS ISO to arbor adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 69.85mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 55mm |
| BD - Body Diameter | 97.45mm |
| LB - Body Length | 55mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 180Nm |
| RPMX - Rotational Speed Maximum | 120001/min |
| WT - Weight Of Item | 4.001kg |
| OAL - Overall Length | 176.6mm |
| OHX - Maximum Overhang | 55mm |
| ORDCODE | 392.54005C5032055 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG17BP_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA1AB1_G3200_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 4 |
| CRKS - Connection Retention Knob Thread Size | M24 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-20 08:21:00.000 |
| STDLET - Standard Letter | AD/B |
| STDNO - Standard Number | DIN69871 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
