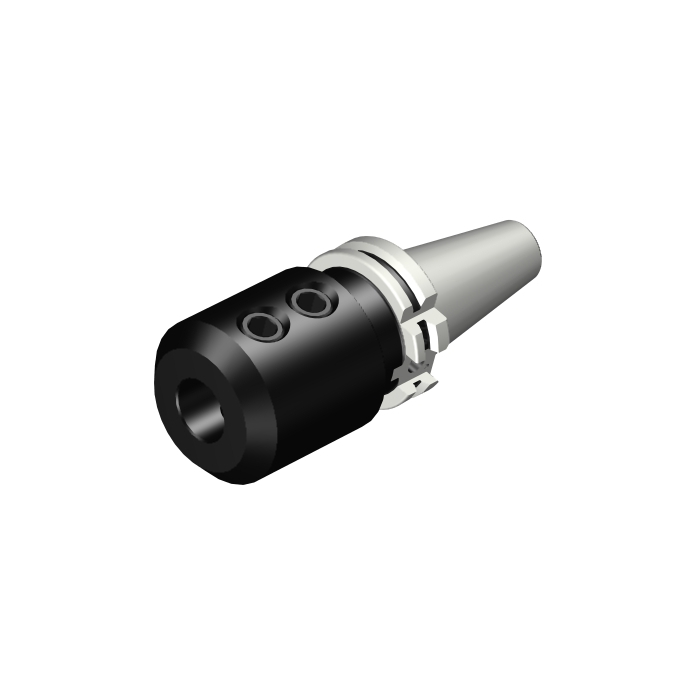

Sandvik Coromant 392.54023-4025100 BIG-PLUS ISO to Weldon / ISO 9766 adaptor

Name: Sandvik Coromant 392.54023-4025100 BIG-PLUS ISO to Weldon / ISO 9766 adaptor
SKU: 6078797
Price: 5620.05 ZAR
Availability: InStock

Be the first to review this product

R 5 620,05 inc. vat

In stock

SKU

6078797

BIG-PLUS ISO to Weldon / ISO 9766 adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

BIG-PLUS ISO to Weldon / ISO 9766 adaptor

More Information

More Information
CP - Coolant Pressure	2000000Pa
DFC - Functional Diameter	44.45mm
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BD - Body Diameter	65mm
LB - Body Length	100mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	25Nm
RPMX - Rotational Speed Maximum	180001/min
WT - Weight Of Item	2.374kg
OAL - Overall Length	168.4mm
OHX - Maximum Overhang	100mm
LSC - Clamping Length	60mm
ORDCODE	392.54023-4025100
ADINTMS - Adaptive Interface Machine Direction	M_SKG17BP_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLISOW_G2500_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
CRKS - Connection Retention Knob Thread Size	M16
BMC - Body Material Code	1
CHANGEDATE	2022-03-15 12:23:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	BIG-PLUS
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
