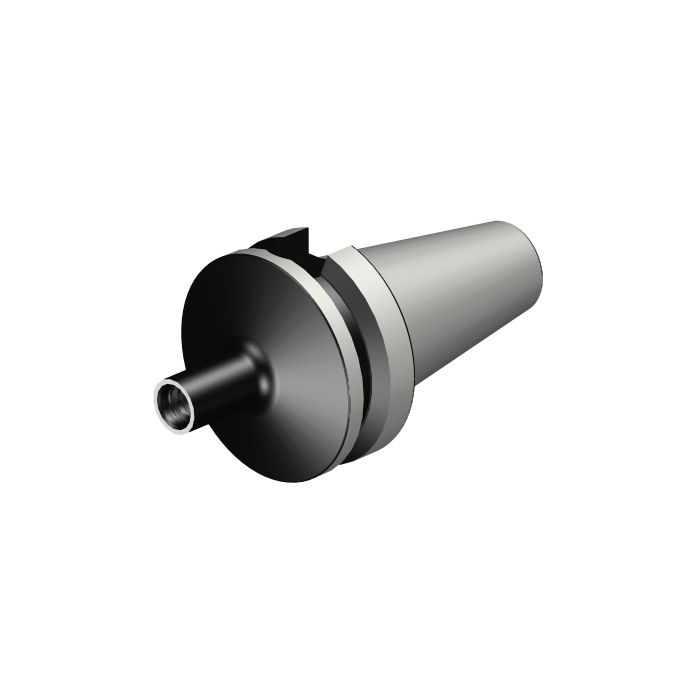

Sandvik Coromant 392.55EH-40 16 060 MAS-BT 403 to Coromant EH adaptor

Name: Sandvik Coromant 392.55EH-40 16 060 MAS-BT 403 to Coromant EH adaptor
SKU: 5852665
Price: 6820.65 ZAR
Availability: InStock

R 6 820,65 inc. vat

In stock

SKU

5852665

MAS-BT 403 to Coromant EH adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

MAS-BT 403 to Coromant EH adaptor

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	44.45mm
DCON - Connection Diameter	15.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
BD - Body Diameter	63mm
LB - Body Length	60mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	30Nm
RPMX - Rotational Speed Maximum	180001/min
WT - Weight Of Item	1.086kg
OAL - Overall Length	128.4mm
OHX - Maximum Overhang	60mm
ORDCODE	392.55EH-40 16 060
ADINTMS - Adaptive Interface Machine Direction	M_SKG51_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SAT01_A0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
CRKS - Connection Retention Knob Thread Size	M16
BMC - Body Material Code	1
CHANGEDATE	2022-03-15 07:08:00.000
STDLET - Standard Letter	AD
STDNO - Standard Number	MAS403-BT
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
