R 8 185,70
inc. vat
In stock
SKU
5852667

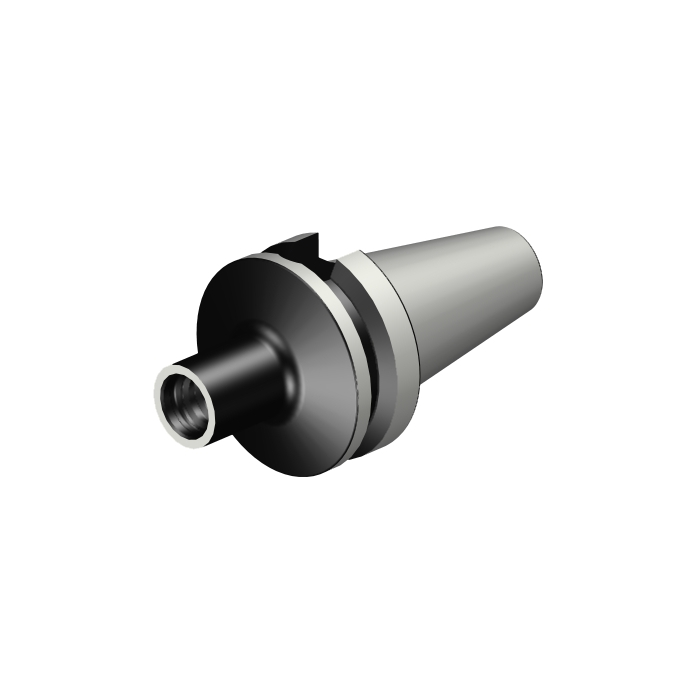

MAS-BT 403 to Coromant EH adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to Coromant EH adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 44.45mm |
DCON - Connection Diameter | 24.1mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 62mm |
BD - Body Diameter | 63mm |
LB - Body Length | 62mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 65Nm |
RPMX - Rotational Speed Maximum | 180001/min |
WT - Weight Of Item | 1.125kg |
OAL - Overall Length | 130.4mm |
OHX - Maximum Overhang | 62mm |
ORDCODE | 392.55EH-40 25 062 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG51_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SAT01_A0250_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
CRKS - Connection Retention Knob Thread Size | M16 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-15 08:38:00.000 |
STDLET - Standard Letter | AD |
STDNO - Standard Number | MAS403-BT |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
