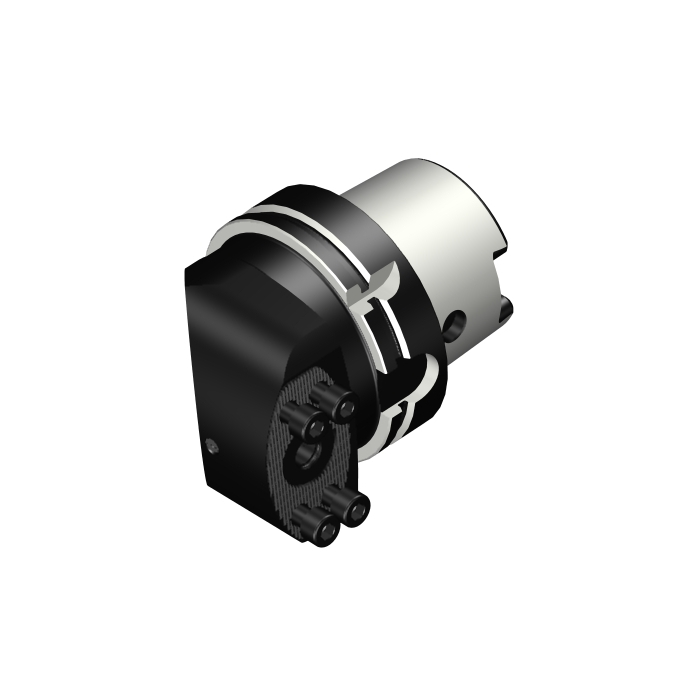

Sandvik Coromant 392.T100SL70RF HSK to CoroTurn™ SL70 adaptor
R 12 008,30
inc. vat
In stock
SKU
6078814
HSK to CoroTurn® SL70 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to CoroTurn® SL70 adaptor
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 75.013mm |
| DCON - Connection Diameter | 100mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 70mm |
| TQ - Torque | 30Nm |
| WT - Weight Of Item | 4.431kg |
| OAL - Overall Length | 140.2mm |
| OHX - Maximum Overhang | 70mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 51.5mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 90.25mm |
| OAW - Overall Width | 100mm |
| WSC - Clamping Width | 70mm |
| ORDCODE | 392.T100SL70RF |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK07_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSA1_C0700_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-17 11:16:00.000 |
| STDLET - Standard Letter | T |
| STDNO - Standard Number | ISO12164-3 |
| Hand | R |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
