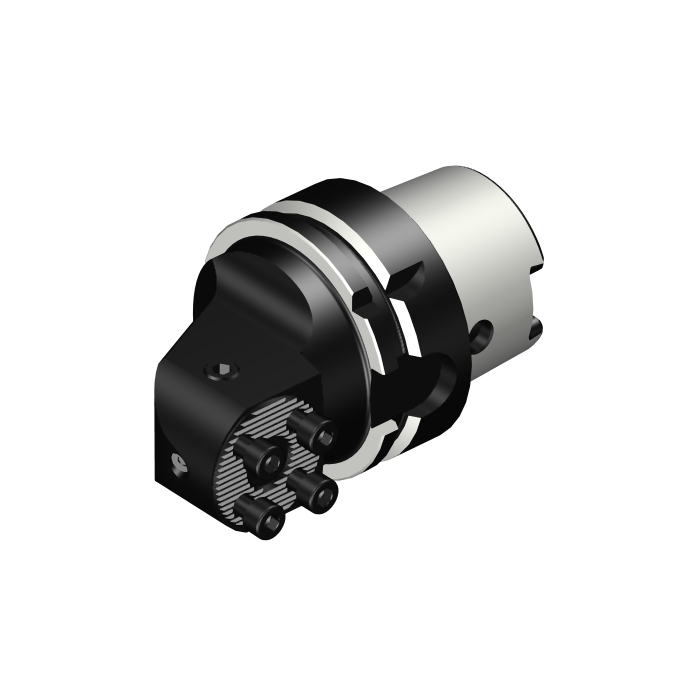

Sandvik Coromant 392.T63SL-32RF HSK to CoroTurn™ SL adaptor
R 10 442,00
inc. vat
In stock
SKU
6078816
HSK to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to CoroTurn® SL adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DFC - Functional Diameter | 48.01mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 60mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 8.8Nm |
| WT - Weight Of Item | 1.105kg |
| OAL - Overall Length | 108.2mm |
| OHX - Maximum Overhang | 60mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 31mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 76mm |
| ORDCODE | 392.T63SL-32RF |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK07_C0630_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSA1_C0320_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| DCPS - Data Chip Provision Size | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-17 13:25:00.000 |
| STDLET - Standard Letter | T |
| STDNO - Standard Number | DIN69893-7 |
| Hand | R |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
