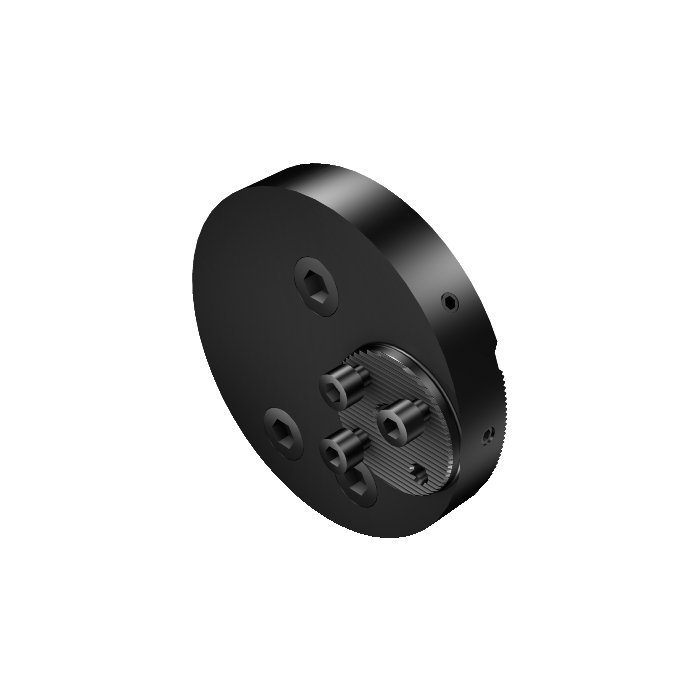

Sandvik Coromant 570-100 20 30-40R CoroTurn™ SL quick change to CoroTurn™ SL adaptor
R 7 411,75
inc. vat
Out of stock
SKU
5764459
CoroTurn® SL quick change to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® SL quick change to CoroTurn® SL adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 20mm |
| BD - Body Diameter | 100mm |
| LB - Body Length | 20mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 17Nm |
| WT - Weight Of Item | 1.184kg |
| OAL - Overall Length | 20mm |
| OHX - Maximum Overhang | 20mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 30mm |
| HF - Functional Height | 0mm |
| H - Shank Height | 37.5mm |
| LPR - Protruding Length | 20mm |
| ORDCODE | 570-100 20 30-40R |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDQB_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSS_C0400_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-29 15:05:00.000 |
| Hand | R |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
