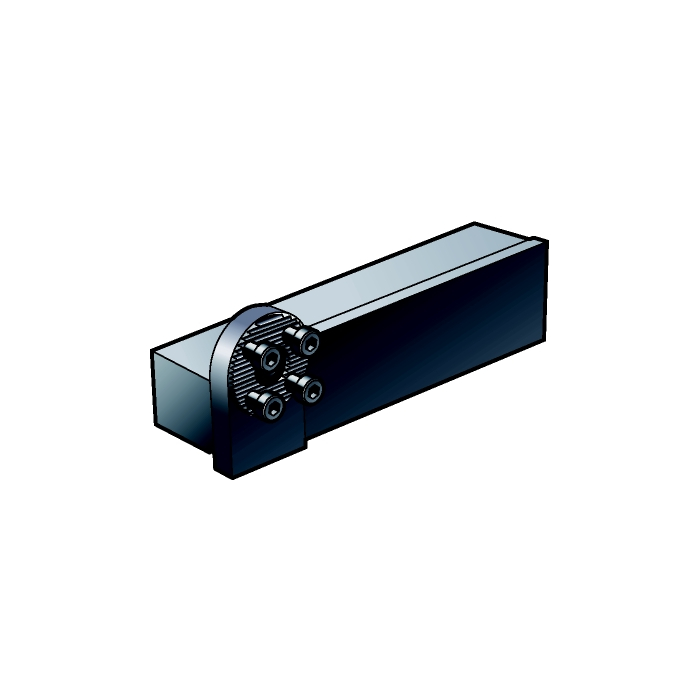

Sandvik Coromant 570-25RF-2525 Rectangular shank to CoroTurn™ SL adaptor
R 2 717,45
inc. vat
In stock
SKU
5764514
Rectangular shank to CoroTurn® SL adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Rectangular shank to CoroTurn® SL adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DCON - Connection Diameter | 25mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 119.15mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 3.7Nm |
| WT - Weight Of Item | 0.624kg |
| OAL - Overall Length | 131.65mm |
| OHX - Maximum Overhang | 26mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 18mm |
| HF - Functional Height | 25mm |
| H - Shank Height | 25mm |
| LPR - Protruding Length | 131.65mm |
| B - Shank Width | 25mm |
| ORDCODE | 570-25RF-2525 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSA1_C0250_1 |
| CNSC - Coolant Entry Style Code | 2 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-11-17 08:49:00.000 |
| Hand | R |
| CNT - Coolant Entry Thread Size | G 1/8-28 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
