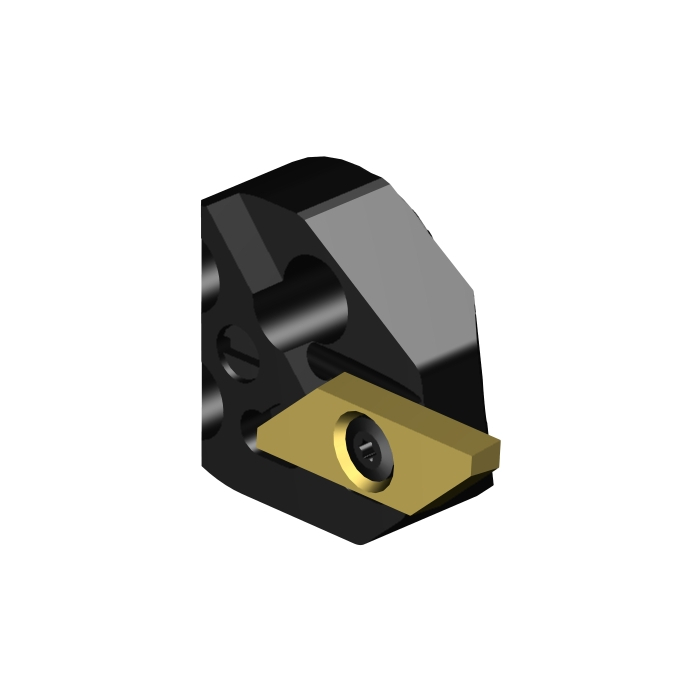

Sandvik Coromant 570-25RSMAL3 CoroCut™ XS head for grooving
R 2 190,75
inc. vat
In stock
SKU
5764516
CoroCut® XS head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS head for grooving
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 25mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 14mm |
| TQ - Torque | 1.2Nm |
| WT - Weight Of Item | 0.041kg |
| OAL - Overall Length | 17.9mm |
| OHX - Maximum Overhang | 14mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 42mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 26.8mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 3.175mm |
| CDX - Cutting Depth Maximum | 8.2mm |
| ORDCODE | 570-25RSMAL3 |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0250_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 14:57:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CE3_1 |
| Hand | R |
| MIID - Master Insert Identification | MACL 3 200-N |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 3 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
