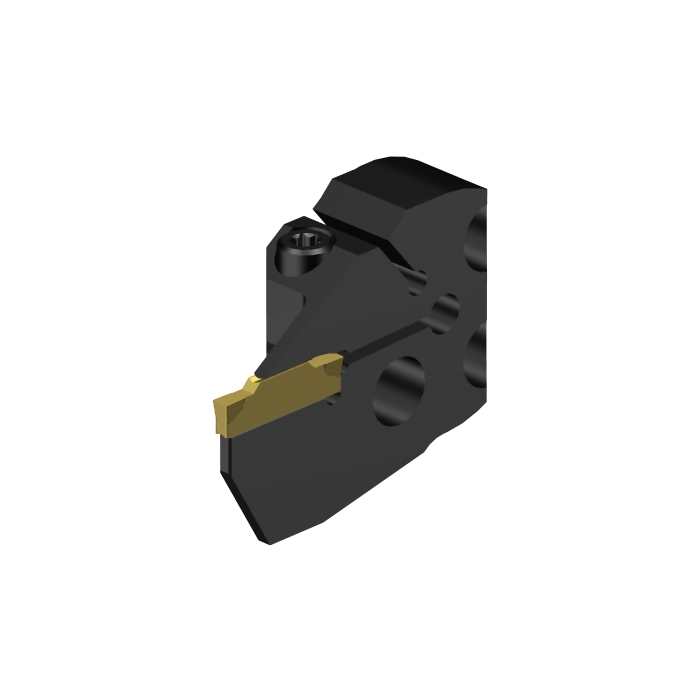

Sandvik Coromant 570-32L123F15B CoroCut™ 1-2 head for grooving

Name: Sandvik Coromant 570-32L123F15B CoroCut™ 1-2 head for grooving
SKU: 5764635
Price: 2301.15 ZAR
Availability: InStock

R 2 301,15 inc. vat

In stock

SKU

5764635

CoroCut® 1-2 head for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 head for grooving

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	14mm
TQ - Torque	2Nm
WT - Weight Of Item	0.11kg
OAL - Overall Length	17.8mm
OHX - Maximum Overhang	12.75mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	139mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	37.35mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.3321mm
CW - Cutting Width	2.5mm
CDX - Cutting Depth Maximum	15mm
ORDCODE	570-32L123F15B
ADINTMS - Adaptive Interface Machine Direction	M_SLHDS_C0320_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	5
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:58:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCF2_4
Hand	L
MIID - Master Insert Identification	N123F2-0250- GM
SSC - Insert Seat Size Code	F
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
