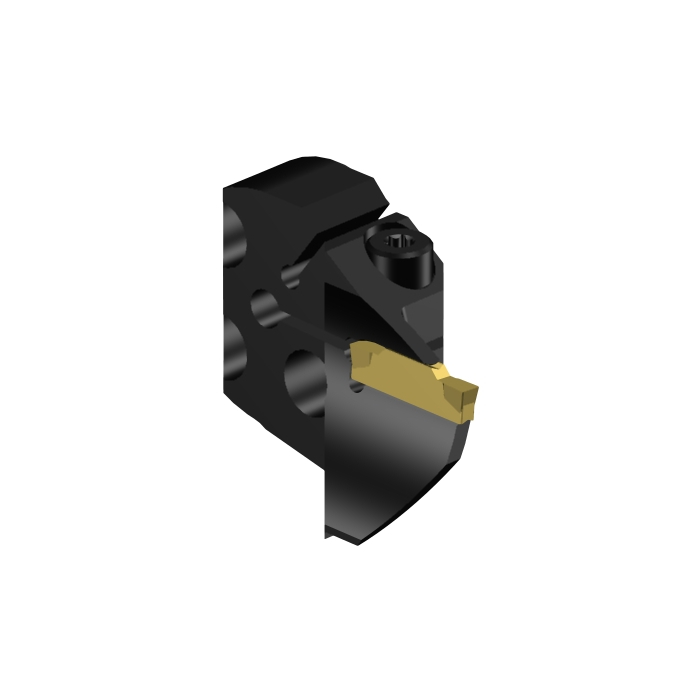

Sandvik Coromant 570-32R123G15B042A CoroCut™ 1-2 head for face grooving
Next
Sandvik Coromant 570-32R123G12B034A CoroCut™ 1-2 head for face grooving
Previous
![Sandvik Coromant 570-32R123G15B042A CoroCut™ 1-2 head for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/52963847d/sandvik-coromant-570-32r123g15b042a-corocuttm-1-2-head-for-face-grooving.jpg)
![Sandvik Coromant 570-32R123G12B034A CoroCut™ 1-2 head for face grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/52960f816/sandvik-coromant-570-32r123g12b034a-corocuttm-1-2-head-for-face-grooving.jpg)
R 4 289,50
inc. vat
In stock
SKU
5764936
CoroCut® 1-2 head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 head for face grooving
CP - Coolant Pressure | 4000000Pa |
---|---|
DCON - Connection Diameter | 32mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 14mm |
TQ - Torque | 2.5Nm |
WT - Weight Of Item | 123g |
OAL - Overall Length | 29.8mm |
OHX - Maximum Overhang | 16.5mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 35.1mm |
HF - Functional Height | 0.1mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.3321mm |
LPR - Protruding Length | 26mm |
CW - Cutting Width | 3mm |
CDX - Cutting Depth Maximum | 12mm |
DAXN - Minimum Axial Groove Outside Diameter | 40mm |
DAXX - Maximum Axial Groove Outside Diameter | 44mm |
ORDCODE | 570-32R123G12B034B |
ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0320_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:00:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCG2_7 |
Hand | R |
MIID - Master Insert Identification | N123G2-0300-0003-TF |
SSC - Insert Seat Size Code | G |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
