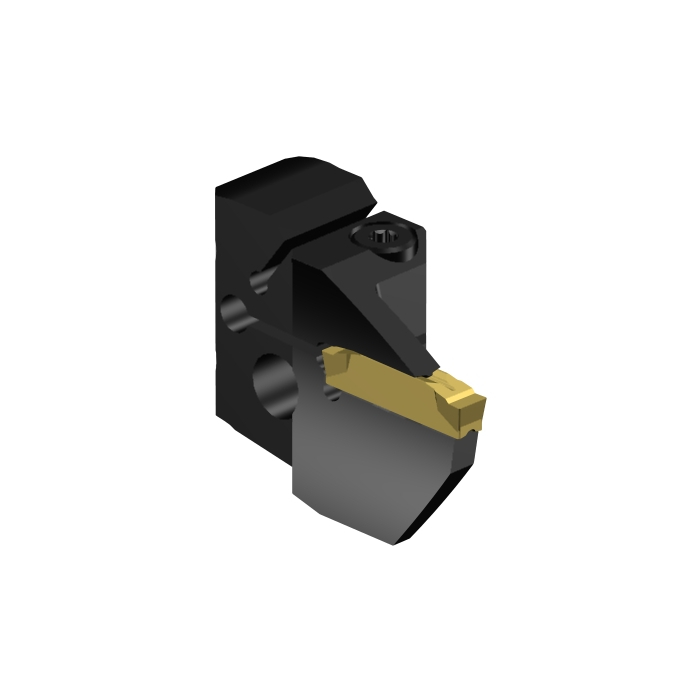

Sandvik Coromant 570-32R123J18B060B CoroCut™ 1-2 head for face grooving

Name: Sandvik Coromant 570-32R123J18B060B CoroCut™ 1-2 head for face grooving
SKU: 5764791
Price: 4289.50 ZAR
Availability: InStock

R 4 289,50 inc. vat

In stock

SKU

5764791

CoroCut® 1-2 head for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 head for face grooving

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	18mm
TQ - Torque	3.5Nm
WT - Weight Of Item	0.132kg
OAL - Overall Length	26.5mm
OHX - Maximum Overhang	15.5mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	41.1mm
HF - Functional Height	0.1mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
LPR - Protruding Length	22.7mm
CW - Cutting Width	5mm
CDX - Cutting Depth Maximum	18mm
DAXN - Minimum Axial Groove Outside Diameter	70mm
DAXX - Maximum Axial Groove Outside Diameter	95mm
ORDCODE	570-32R123J18B060B
ADINTMS - Adaptive Interface Machine Direction	M_SLHDS_C0320_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:59:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCJ2_8
Hand	R
MIID - Master Insert Identification	N123J2-0500-0004-TF
SSC - Insert Seat Size Code	J
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
