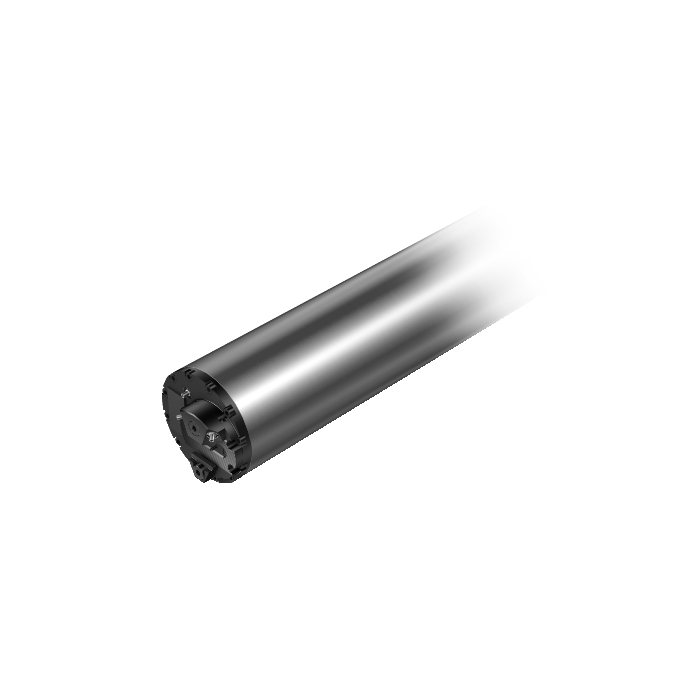

Sandvik Coromant 570-3C 160 2600R Cylindrical shank to CoroTurn™ SL quick change damped adaptor
R 624 969,80
inc. vat
Out of stock
SKU
6253583
Cylindrical shank to CoroTurn® SL quick change damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to CoroTurn® SL quick change damped adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DCON - Connection Diameter | 80mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 2600mm |
| BD - Body Diameter | 160mm |
| LB - Body Length | 2600mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 50Nm |
| WT - Weight Of Item | 288kg |
| OAL - Overall Length | 2626.5mm |
| OHX - Maximum Overhang | 1555mm |
| LSC - Clamping Length | 1551mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| OHN - Minimum Overhang | 1075mm |
| WF - Functional Width | 40mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 2600mm |
| ADJLN - Minimum Adjustment Limit | 0mm |
| ADJLX - Maximum Adjustment Limit | 19mm |
| ORDCODE | 570-3C 160 2600R |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_H1600_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDQ_C0800_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-09 08:30:00.000 |
| Hand | R |
| CNT - Coolant Entry Thread Size | G 3/4-14 |
| DPC - Damping Property | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | False |
| ADJBY - Adjustability | True |
