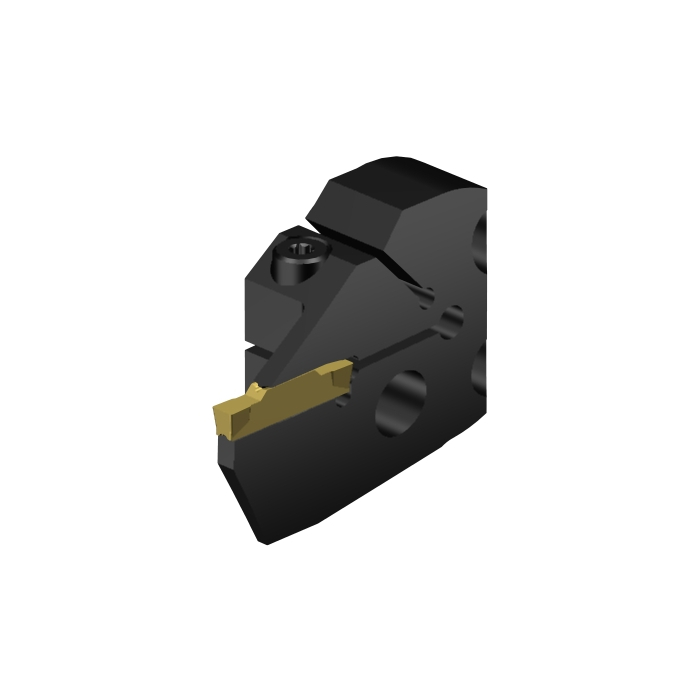

Sandvik Coromant 570-40L123H18B220A CoroCut™ 1-2 head for face grooving

R 4 547,10 inc. vat
In stock
SKU
6038461
CoroCut® 1-2 head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 head for face grooving
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 18mm
TQ - Torque 3Nm
WT - Weight Of Item 0.231kg
OAL - Overall Length 21.8mm
OHX - Maximum Overhang 18mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 45.1mm
HF - Functional Height 0.1mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.35mm
CW - Cutting Width 4mm
CDX - Cutting Depth Maximum 18mm
DAXN - Minimum Axial Groove Outside Diameter 228mm
DAXX - Maximum Axial Groove Outside Diameter 500mm
ORDCODE 570-40L123H18B220A
ADINTMS - Adaptive Interface Machine Direction M_SLHDS_C0400_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:03:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCH2_5
Hand L
MIID - Master Insert Identification N123H2-0400-0004-TF
SSC - Insert Seat Size Code H
CICT - Cutting Item Count 1
AXGSUP - Axial Groove Support Direction 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
