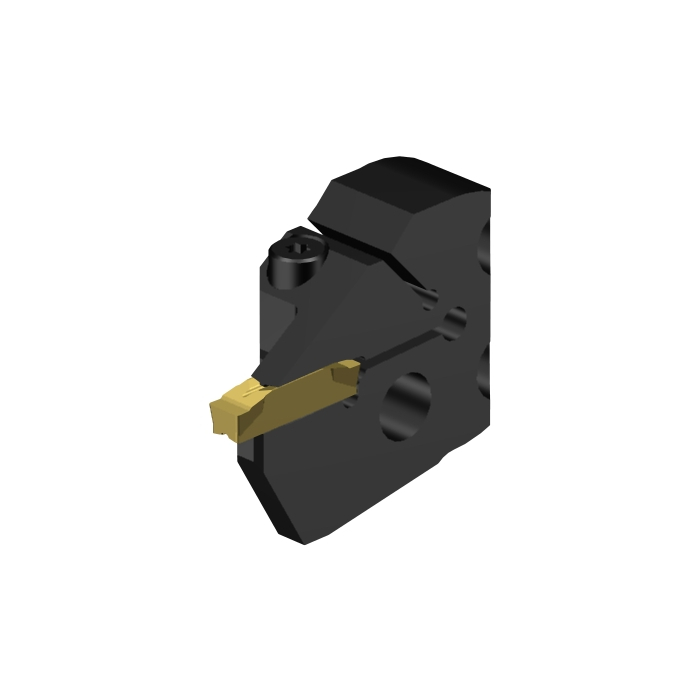

Sandvik Coromant 570-40L123K17C CoroCut™ 1-2 head for grooving
R 2 432,25
inc. vat
In stock
SKU
5765151
CoroCut® 1-2 head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 head for grooving
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 18mm |
| TQ - Torque | 2.5Nm |
| WT - Weight Of Item | 0.219kg |
| OAL - Overall Length | 21.8mm |
| OHX - Maximum Overhang | 15mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 92mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 44.1mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.35mm |
| CW - Cutting Width | 6mm |
| CDX - Cutting Depth Maximum | 17mm |
| ORDCODE | 570-40L123K17C |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0400_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 5 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:01:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCK2_5 |
| Hand | L |
| MIID - Master Insert Identification | N123K2-0600-0004-TF |
| SSC - Insert Seat Size Code | K |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
