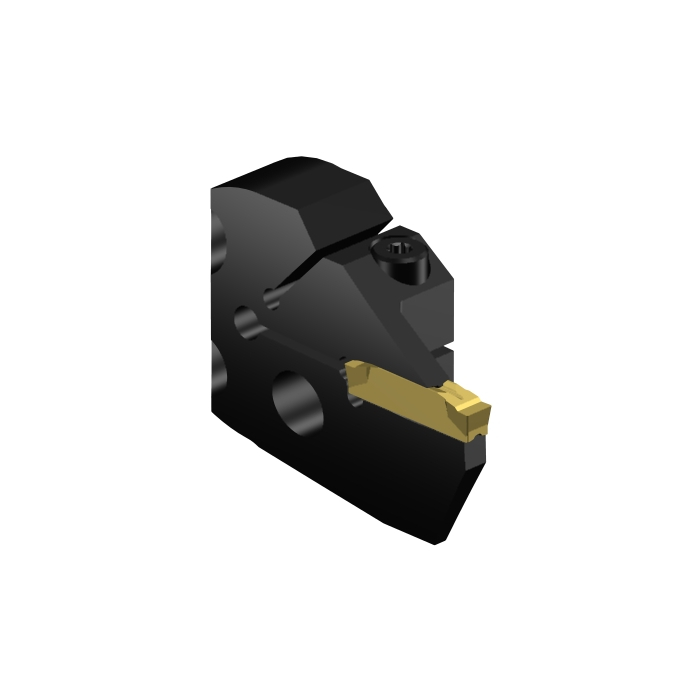

Sandvik Coromant 570-40R123J18B175A CoroCut™ 1-2 head for face grooving
R 4 547,10
inc. vat
Out of stock
SKU
6038513
CoroCut® 1-2 head for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 head for face grooving
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 18mm |
| TQ - Torque | 3.5Nm |
| WT - Weight Of Item | 0.233kg |
| OAL - Overall Length | 21.8mm |
| OHX - Maximum Overhang | 18mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 45.1mm |
| HF - Functional Height | 0.1mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.35mm |
| CW - Cutting Width | 5mm |
| CDX - Cutting Depth Maximum | 18mm |
| DAXN - Minimum Axial Groove Outside Diameter | 185mm |
| DAXX - Maximum Axial Groove Outside Diameter | 500mm |
| ORDCODE | 570-40R123J18B175A |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0400_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:04:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCJ2_8 |
| Hand | R |
| MIID - Master Insert Identification | N123J2-0500-0004-TF |
| SSC - Insert Seat Size Code | J |
| CICT - Cutting Item Count | 1 |
| AXGSUP - Axial Groove Support Direction | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
