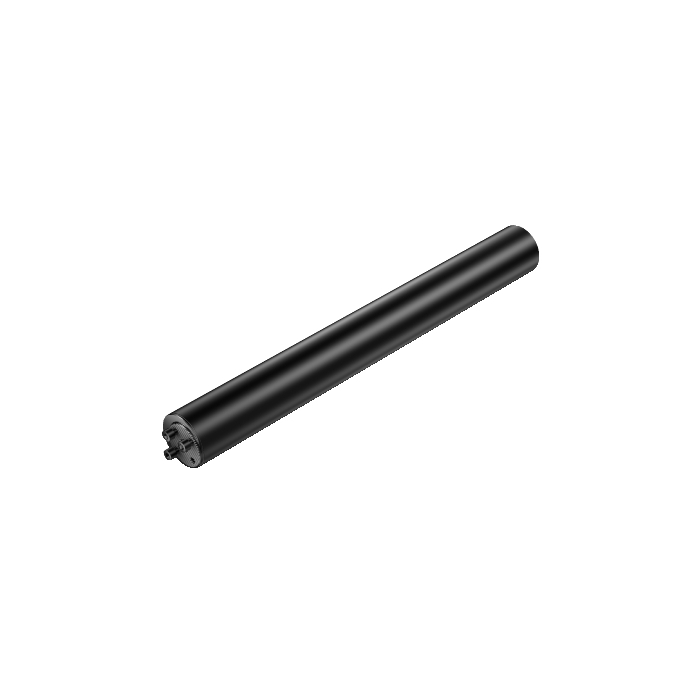

Sandvik Coromant 570-4C 60 510-40 Cylindrical shank to CoroTurn™ SL damped adaptor

R 47 467,40 inc. vat
In stock
SKU
5765132
Cylindrical shank to CoroTurn® SL damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to CoroTurn® SL damped adaptor
More Information
CP - Coolant Pressure 7000000Pa
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 510mm
BD - Body Diameter 60mm
LB - Body Length 510mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 17Nm
WT - Weight Of Item 10.1kg
OAL - Overall Length 510mm
OHX - Maximum Overhang 208mm
LSC - Clamping Length 360mm
BAWS - Workpiece Side Body Angle 0deg
OHN - Minimum Overhang 90mm
WF - Functional Width 10mm
HF - Functional Height 0mm
LPR - Protruding Length 510mm
ORDCODE 570-4C 60 510-40
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G6000_1
ADINTWS - Adaptive Interface Workpiece Direction W_SLHDSS_C0400_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2022-05-23 19:21:00.000
Hand N
CNT - Coolant Entry Thread Size G 3/4-14
DPC - Damping Property True
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
LOCAP - Location Aid Property False
