R 4 403,35
inc. vat
In stock
SKU
5856112
CoroTurn® 107 head for back boring
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 head for back boring
CP - Coolant Pressure | 4000000Pa |
---|---|
DCON - Connection Diameter | 20mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 15mm |
TQ - Torque | 0.9Nm |
WT - Weight Of Item | 0.035kg |
OAL - Overall Length | 31mm |
OHX - Maximum Overhang | 15mm |
KAPR - Tool Cutting Edge Angle | 93deg |
RMPX - Maximum Ramping Angle | 30deg |
DMIN - Minimum Bore Diameter | 32mm |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 20mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 2deg |
LAMS - Inclination Angle | -3deg |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 6.35mm |
RE - Corner Radius | 0.396875mm |
Insert Thickness | 3.175mm |
LPR - Protruding Length | 27mm |
ORDCODE | 570-SVUCL-20-11X-E |
ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0200_1 |
CNSC - Coolant Entry Style Code | 8 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:01:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_VC1103_1 |
Hand | L |

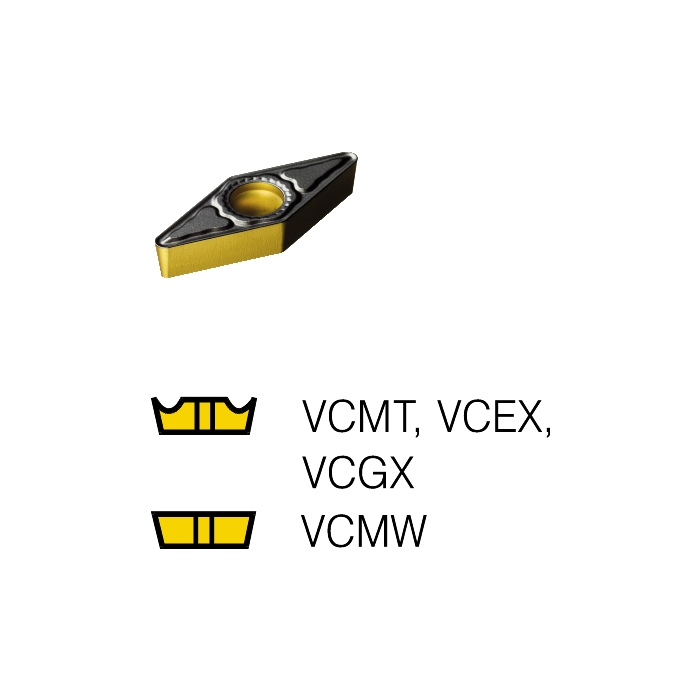

MIID - Master Insert Identification | VCMT 11 03 04 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | V |
SSC - Insert Seat Size Code | 11 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
