Sandvik Coromant 930-C5-T-20-046 Coromant Capto™ to CoroChuckâ„¢ 930
R 10 015,35
inc. vat
In stock
SKU
6976415

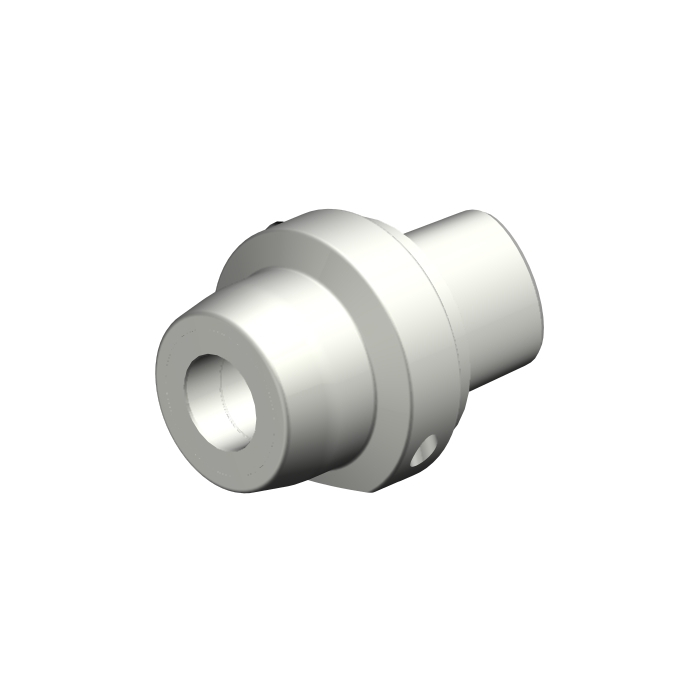

Coromant Capto® to CoroChuck™ 930
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroChuck™ 930
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 20mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 46mm |
| BD - Body Diameter | 57mm |
| LB - Body Length | 46mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 8Nm |
| RPMX - Rotational Speed Maximum | 100001/min |
| WT - Weight Of Item | 635g |
| OAL - Overall Length | 76mm |
| OHX - Maximum Overhang | 46mm |
| LSC - Clamping Length | 51mm |
| OHN - Minimum Overhang | 46mm |
| ORDCODE | 930-C5-T-20-046 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS02_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLH_G2000_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:15:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
