Sandvik Coromant A05H-SWLPR 1.2 CoroTurn™ 111 boring bar for turning

Name: Sandvik Coromant A05H-SWLPR 1.2 CoroTurn™ 111 boring bar for turning
SKU: 5721369
Price: 2190.75 ZAR
Availability: InStock

R 2 190,75 inc. vat

In stock

SKU

5721369

CoroTurn® 111 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 111 boring bar for turning

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	7.9375mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	101.6mm
BD - Body Diameter	7.9375mm
TQ - Torque	0.6Nm
WT - Weight Of Item	0.03kg
OAL - Overall Length	101.6mm
OHX - Maximum Overhang	31.75mm
LSC - Clamping Length	89.7mm
KAPR - Tool Cutting Edge Angle	95deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	10.5mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	11.9063mm
WF - Functional Width	5.5626mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	2deg
LAMS - Inclination Angle	-9deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	3.96875mm
RE - Corner Radius	0.1984375mm
Insert Thickness	1.5875mm
H - Shank Height	6.9088mm
ORDCODE	A05H-SWLPR 1.2
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_R3125_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 14:53:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_WP0201_1
Hand	R

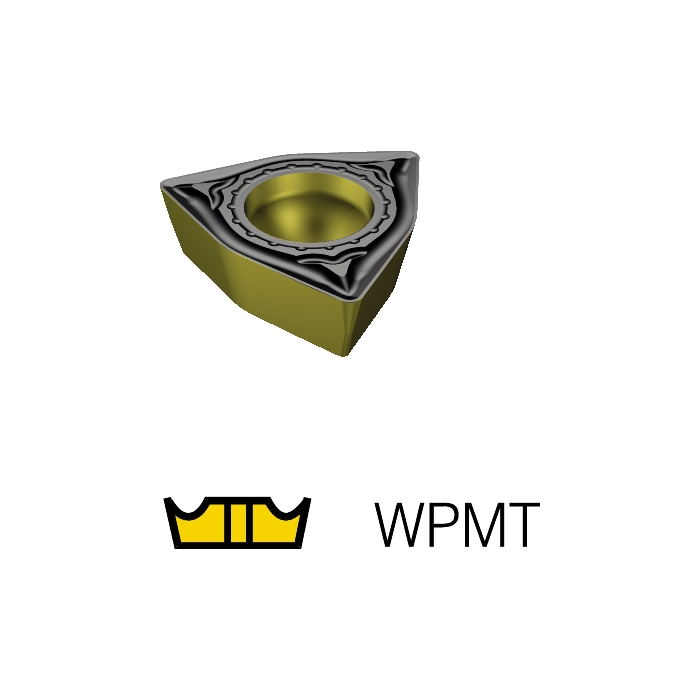

MIID - Master Insert Identification	WPMT 02 01 02
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	W
SSC - Insert Seat Size Code	02
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
