Sandvik Coromant A06F-STUCL 05-GR CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant A06F-STUCL 05-GR CoroTurn™ 107 boring bar for turning
SKU: 5721363
Price: 2167.75 ZAR
Availability: InStock

R 2 167,75 inc. vat

In stock

SKU

5721363

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	80mm
BD - Body Diameter	6mm
TQ - Torque	0.4Nm
WT - Weight Of Item	0.025kg
OAL - Overall Length	80mm
OHX - Maximum Overhang	24mm
LSC - Clamping Length	71mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	7mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	9mm
WF - Functional Width	3.2mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	3.175mm
RE - Corner Radius	0mm
Insert Thickness	1.4mm
ORDCODE	A06F-STUCL 05-GR
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_F6000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:31:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TC0501_2
Hand	L

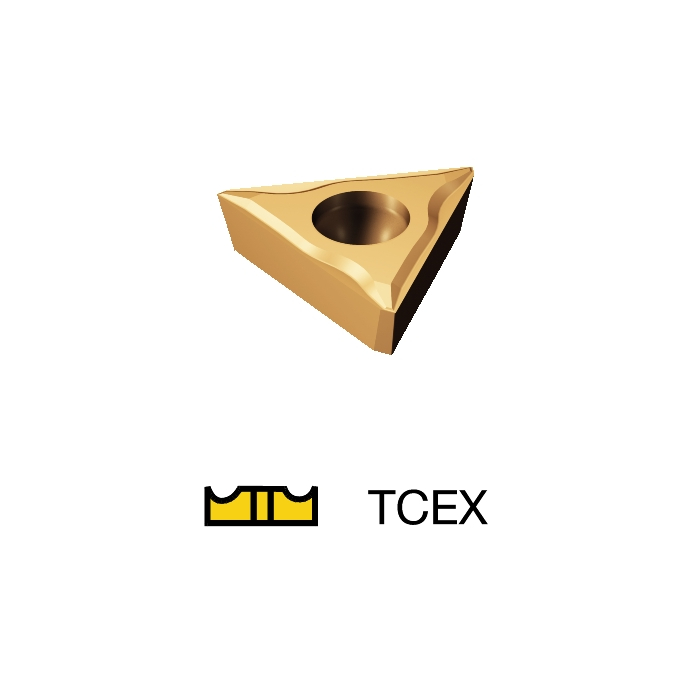

MIID - Master Insert Identification	TCEX 05 01 00R-F
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	05
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
