Sandvik Coromant A10K-SCLPL 06 CoroTurn™ 111 boring bar for turning

Name: Sandvik Coromant A10K-SCLPL 06 CoroTurn™ 111 boring bar for turning
SKU: 5727560
Price: 2190.75 ZAR
Availability: InStock

R 2 190,75 inc. vat

In stock

SKU

5727560

CoroTurn® 111 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 111 boring bar for turning

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	125mm
BD - Body Diameter	10mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.058kg
OAL - Overall Length	125mm
OHX - Maximum Overhang	40mm
LSC - Clamping Length	110mm
KAPR - Tool Cutting Edge Angle	95deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	12mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	15mm
WF - Functional Width	6mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	4deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
H - Shank Height	9mm
ORDCODE	A10K-SCLPL 06
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G1000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:07:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_CP0602_1
Hand	L

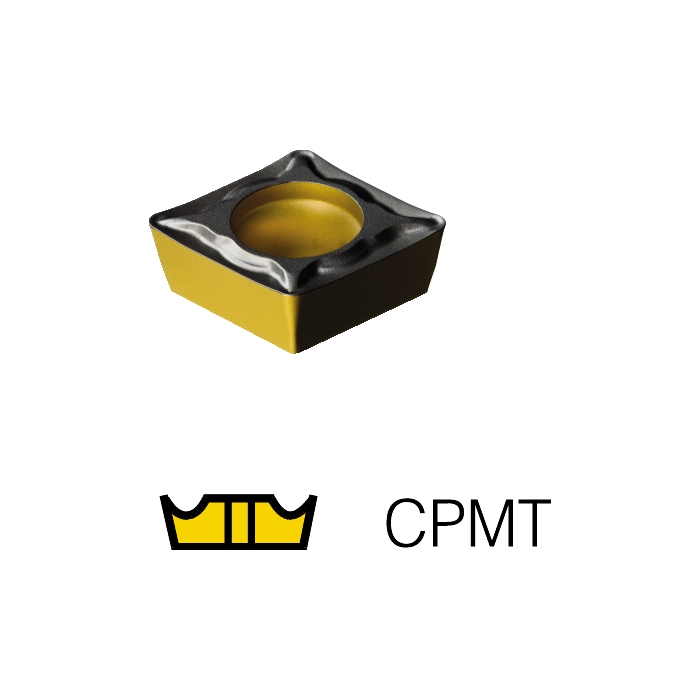

MIID - Master Insert Identification	CPMT 06 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	C
SSC - Insert Seat Size Code	06
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
