Sandvik Coromant A10K-SCLPL 06-R CoroTurn™ 111 boring bar for turning

R 2 190,75 inc. vat
In stock
SKU
5727563
CoroTurn® 111 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 boring bar for turning
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 10mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 125mm
BD - Body Diameter 10mm
TQ - Torque 0.9Nm
WT - Weight Of Item 0.062kg
OAL - Overall Length 125mm
OHX - Maximum Overhang 40mm
LSC - Clamping Length 110mm
KAPR - Tool Cutting Edge Angle 95deg
RMPX - Maximum Ramping Angle 0deg
DMIN - Minimum Bore Diameter 12mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 15mm
WF - Functional Width 6mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 4deg
LAMS - Inclination Angle -7deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.396875mm
Insert Thickness 2.38125mm
ORDCODE A10K-SCLPL 06-R
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G1000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:07:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_CP0602_1
Hand L

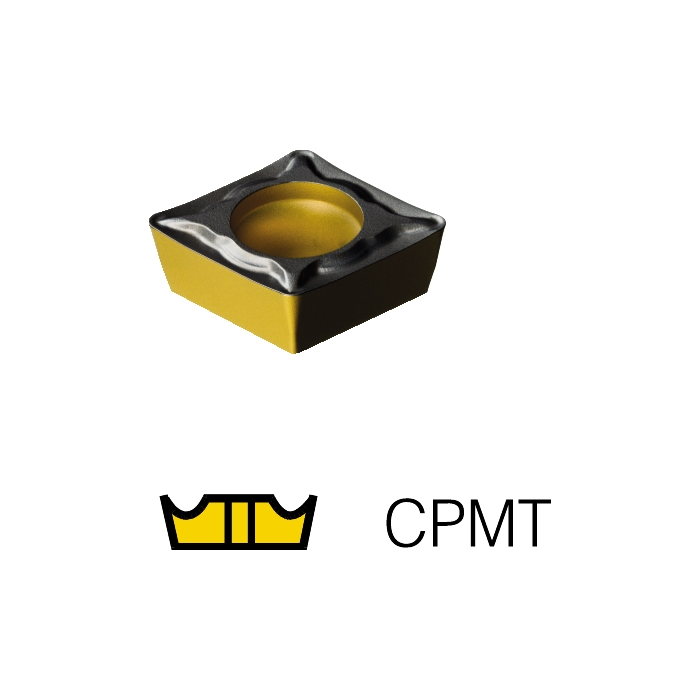

MIID - Master Insert Identification CPMT 06 02 04
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 06
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
LOCAP - Location Aid Property True
