Sandvik Coromant A16K-SRDDN 08-R CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant A16K-SRDDN 08-R CoroTurn™ 107 boring bar for turning
SKU: 5722012
Price: 2167.75 ZAR
Availability: InStock

R 2 167,75 inc. vat

In stock

SKU

5722012

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	125mm
BD - Body Diameter	16mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.152kg
OAL - Overall Length	125mm
OHX - Maximum Overhang	64mm
LSC - Clamping Length	103.6mm
RMPX - Maximum Ramping Angle	90deg
DMIN - Minimum Bore Diameter	20mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	24mm
WF - Functional Width	4mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	8mm
RE - Corner Radius	4mm
Insert Thickness	2.78mm
LU - Usable Length	12.56mm
ORDCODE	A16K-SRDDN 08-R
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G1600_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-06-14 13:25:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD0828_1
Hand	N

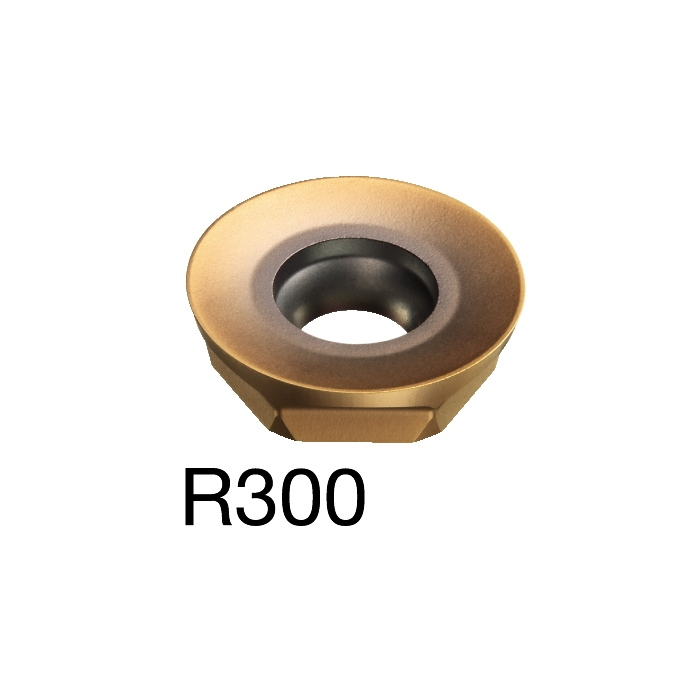

MIID - Master Insert Identification	R300-0828..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	08
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	False
