Sandvik Coromant A16R-SSKCL 09 CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant A16R-SSKCL 09 CoroTurn™ 107 boring bar for turning
SKU: 5721379
Price: 2167.75 ZAR
Availability: InStock

R 2 167,75 inc. vat

In stock

SKU

5721379

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	200mm
BD - Body Diameter	16mm
TQ - Torque	3Nm
WT - Weight Of Item	0.25kg
OAL - Overall Length	202.23mm
OHX - Maximum Overhang	64mm
LSC - Clamping Length	176mm
KAPR - Tool Cutting Edge Angle	75deg
RMPX - Maximum Ramping Angle	10deg
DMIN - Minimum Bore Diameter	20mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	24mm
WF - Functional Width	11mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-8.865deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	9.525mm
RE - Corner Radius	0.79375mm
Insert Thickness	3.96875mm
H - Shank Height	15mm
LPR - Protruding Length	202.23mm
ORDCODE	A16R-SSKCL 09
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G1600_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 14:53:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_SC09T3_1
Hand	L

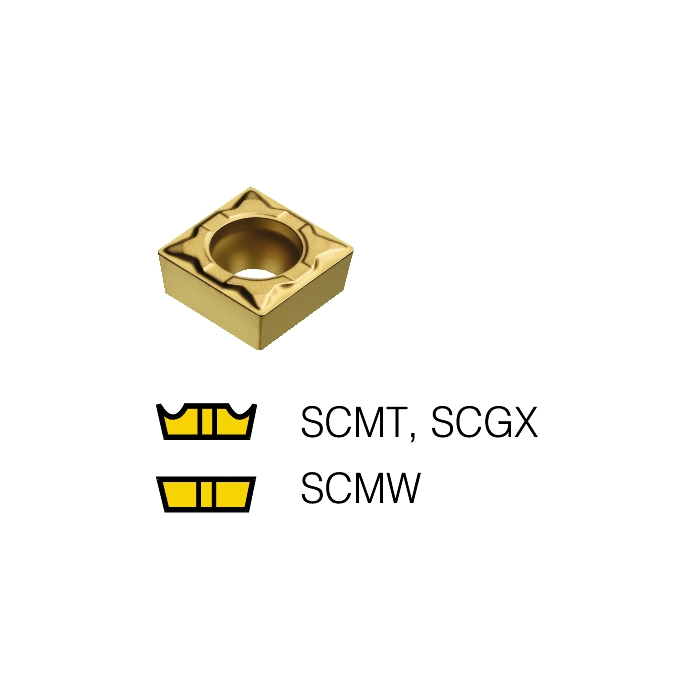

MIID - Master Insert Identification	SCMT 09 T3 08
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	09
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
