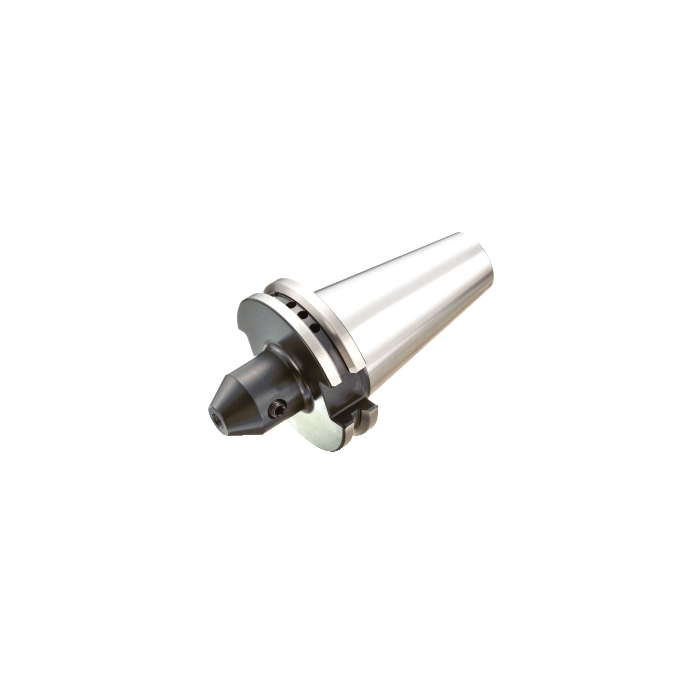

Sandvik Coromant A1B20-40 12 100 ISO 7388-1 to Weldon adaptor

R 1 620,35 inc. vat
Out of stock
SKU
5721520
ISO 7388-1 to Weldon adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
ISO 7388-1 to Weldon adaptor
More Information
CP - Coolant Pressure 2000000Pa
DFC - Functional Diameter 44.45mm
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
BD - Body Diameter 42mm
LB - Body Length 78.95mm
BHTA - Body Half Taper Angle 30deg
TQ - Torque 12Nm
RPMX - Rotational Speed Maximum 180001/min
WT - Weight Of Item 1.571kg
OAL - Overall Length 168.4mm
OHX - Maximum Overhang 100mm
LSC - Clamping Length 48mm
ORDCODE A1B20-40 12 100
ADINTMS - Adaptive Interface Machine Direction M_SKG17_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_CYLW_G1200_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 1
DCPS - Data Chip Provision Size 2
CRKS - Connection Retention Knob Thread Size M16
BMC - Body Material Code 1
CHANGEDATE 2022-09-02 06:31:00.000
STDLET - Standard Letter AD/B
STDNO - Standard Number DIN69871
DPC - Damping Property False
DCP - Data Chip Provision True
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
