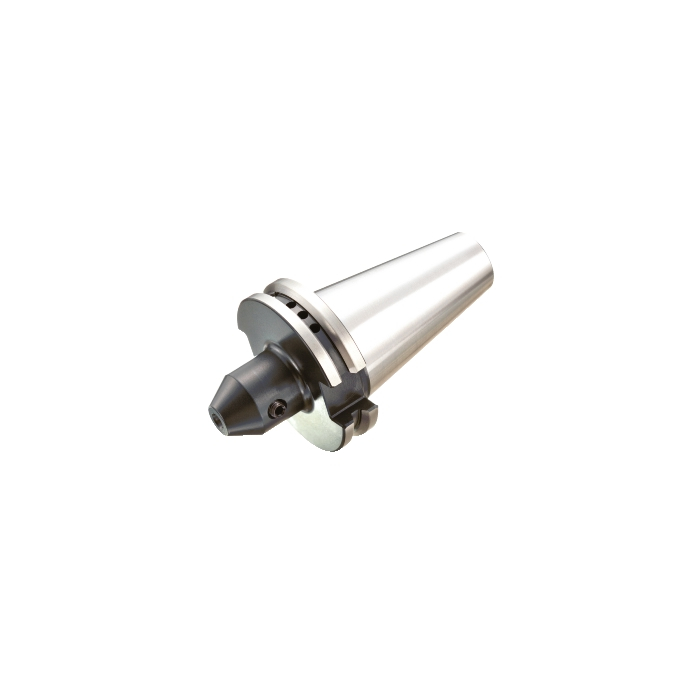

Sandvik Coromant A1B20-50 25 100 ISO 7388-1 to Weldon adaptor

Name: Sandvik Coromant A1B20-50 25 100 ISO 7388-1 to Weldon adaptor
SKU: 5721797
Price: 2264.35 ZAR
Availability: InStock

R 2 264,35 inc. vat

In stock

SKU

5721797

ISO 7388-1 to Weldon adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

ISO 7388-1 to Weldon adaptor

More Information
CP - Coolant Pressure	2000000Pa
DFC - Functional Diameter	69.85mm
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BD - Body Diameter	97.45mm
LB - Body Length	100mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	25Nm
RPMX - Rotational Speed Maximum	120001/min
WT - Weight Of Item	4.452kg
OAL - Overall Length	201.8mm
OHX - Maximum Overhang	100mm
LSC - Clamping Length	59mm
ORDCODE	A1B20-50 25 100
ADINTMS - Adaptive Interface Machine Direction	M_SKG17_C0500_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLW_G2500_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
CRKS - Connection Retention Knob Thread Size	M24
BMC - Body Material Code	1
CHANGEDATE	2022-09-02 06:31:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	DIN69871
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
