Sandvik Coromant A20M-SRXDL 10-R CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant A20M-SRXDL 10-R CoroTurn™ 107 boring bar for turning
SKU: 5721966
Price: 2655.35 ZAR
Availability: InStock

R 2 655,35 inc. vat

In stock

SKU

5721966

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
BD - Body Diameter	20mm
TQ - Torque	3Nm
WT - Weight Of Item	0.296kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	80mm
LSC - Clamping Length	120mm
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	25mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	30mm
WF - Functional Width	9mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	10mm
RE - Corner Radius	5mm
Insert Thickness	3.175mm
ORDCODE	A20M-SRXDL 10-R
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-14 13:25:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD1032_1
Hand	L

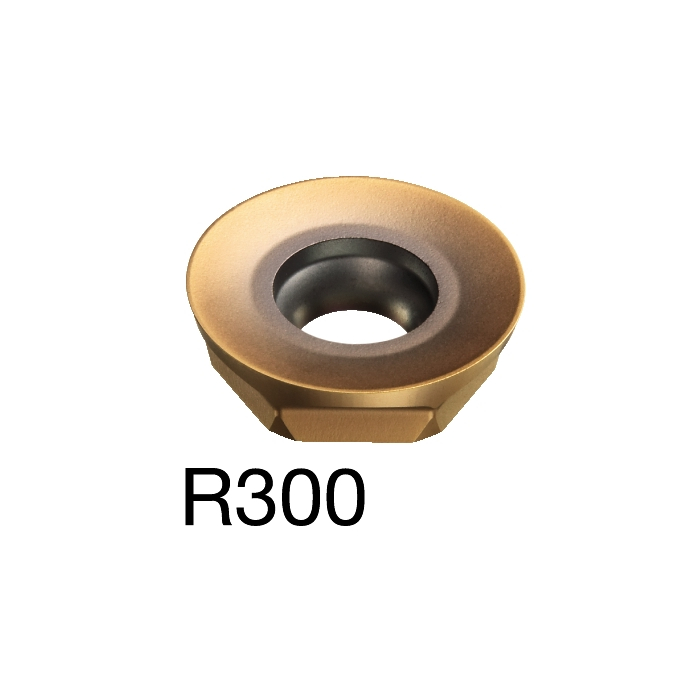

MIID - Master Insert Identification	R300-1032..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	10
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
