Sandvik Coromant A25T-MWLNR 06 T-Max™ P boring bar for turning
Next
Sandvik Coromant A25T-MWLNL 06 T-Max™ P boring bar for turning
Previous
![Sandvik Coromant A25T-MWLNR 06 T-Max™ P boring bar for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/41614231f/sandvik-coromant-a25t-mwlnr-06-t-maxtm-p-boring-bar-for-turning.jpg)
![Sandvik Coromant A25T-MWLNL 06 T-Max™ P boring bar for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/416120b72/sandvik-coromant-a25t-mwlnl-06-t-maxtm-p-boring-bar-for-turning.jpg)
R 4 739,15
inc. vat
In stock
SKU
5722396
T-Max® P boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P boring bar for turning
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 25mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 300mm |
BD - Body Diameter | 25mm |
TQ - Torque | 4.5Nm |
WT - Weight Of Item | 959.6g |
OAL - Overall Length | 300mm |
OHX - Maximum Overhang | 100mm |
LSC - Clamping Length | 262.5mm |
KAPR - Tool Cutting Edge Angle | 95deg |
RMPX - Maximum Ramping Angle | 0deg |
DMIN - Minimum Bore Diameter | 32mm |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
OHN - Minimum Overhang | 37.5mm |
WF - Functional Width | 17mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | -6deg |
LAMS - Inclination Angle | -14deg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 4.7625mm |
H - Shank Height | 23mm |
ORDCODE | A25T-MWLNL 08 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G2500_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-07 01:24:00.000 |
MTP - Clamping Type Code | W |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_WN0804_1 |
Hand | L |

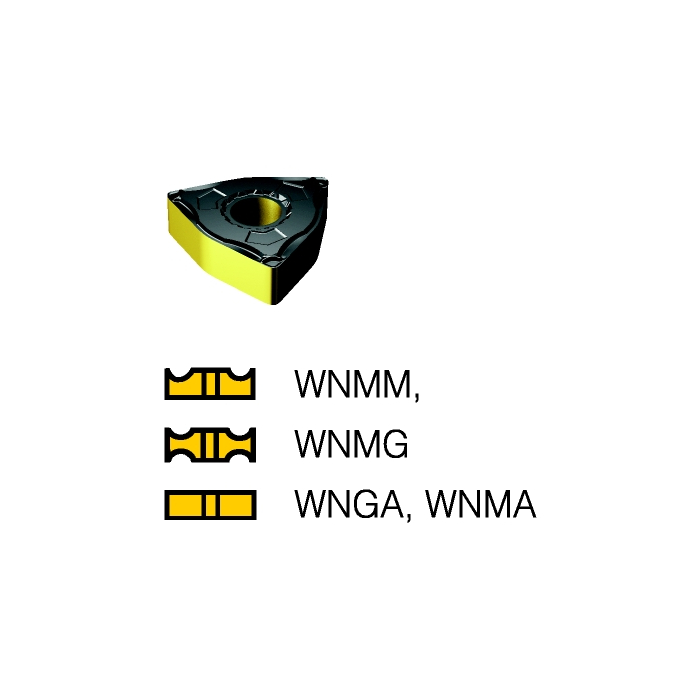

MIID - Master Insert Identification | WNMG 08 04 08 |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | W |
SSC - Insert Seat Size Code | 08 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
