Sandvik Coromant A25T-SVQBL 11-D CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant A25T-SVQBL 11-D CoroTurn™ 107 boring bar for turning
SKU: 5937379
Price: 3052.10 ZAR
Availability: OutOfStock

R 3 052,10 inc. vat

Out of stock

SKU

5937379

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	300mm
BD - Body Diameter	25mm
TQ - Torque	0.9Nm
WT - Weight Of Item	893g
OAL - Overall Length	300mm
OHX - Maximum Overhang	100mm
LSC - Clamping Length	262.5mm
KAPR - Tool Cutting Edge Angle	107.5deg
RMPX - Maximum Ramping Angle	35deg
DMIN - Minimum Bore Diameter	33mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	37.5mm
WF - Functional Width	18mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-3.987deg
AN - Clearance Angle Major	5deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
H - Shank Height	23mm
ORDCODE	A25T-SVQBL 11-D
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G2500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:09:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_VB1102_1
Hand	L

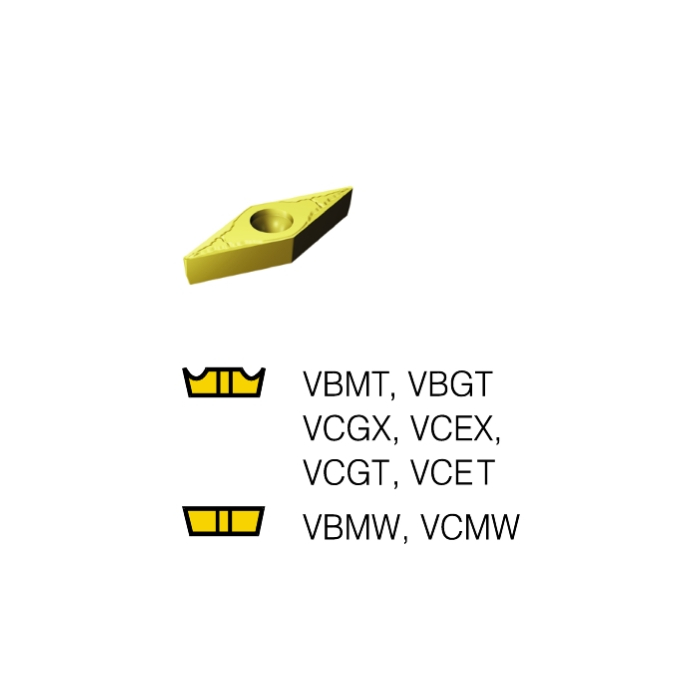

MIID - Master Insert Identification	VBMT 11 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	V
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
