Sandvik Coromant A25T-SVUBL 16-D CoroTurn™ 107 boring bar for turning
R 3 052,10
inc. vat
In stock
SKU
5722349
CoroTurn® 107 boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 boring bar for turning
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DCON - Connection Diameter | 25mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 300mm |
| BD - Body Diameter | 25mm |
| TQ - Torque | 3Nm |
| WT - Weight Of Item | 899g |
| OAL - Overall Length | 300mm |
| OHX - Maximum Overhang | 100mm |
| LSC - Clamping Length | 262.5mm |
| KAPR - Tool Cutting Edge Angle | 93deg |
| RMPX - Maximum Ramping Angle | 50deg |
| DMIN - Minimum Bore Diameter | 33mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 37.5mm |
| WF - Functional Width | 18mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | -6.729deg |
| AN - Clearance Angle Major | 5deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.79375mm |
| Insert Thickness | 4.7625mm |
| H - Shank Height | 23mm |
| ORDCODE | A25T-SVUBL 16-D |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G2500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:00:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_VB1604_1 |
| Hand | L |

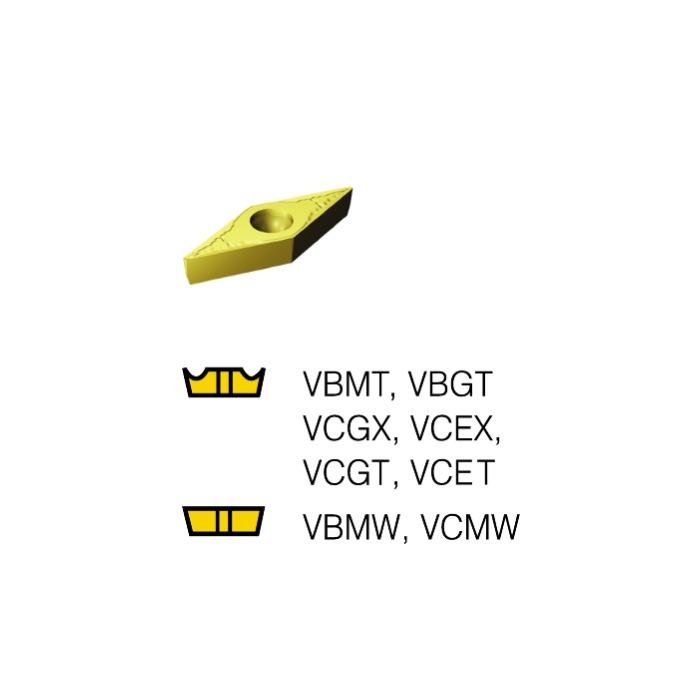

| MIID - Master Insert Identification | VBMT 16 04 08 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | V |
| SSC - Insert Seat Size Code | 16 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
