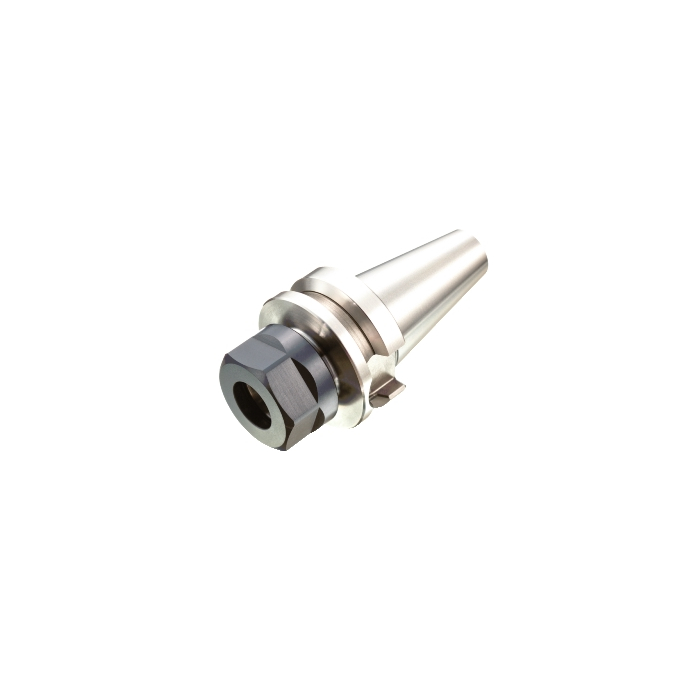

Sandvik Coromant A2B14-30 11 050 MAS-BT 403 to ER collet chuck

Name: Sandvik Coromant A2B14-30 11 050 MAS-BT 403 to ER collet chuck
SKU: 5721627
Price: 2160.85 ZAR
Availability: InStock

R 2 160,85 inc. vat

In stock

SKU

5721627

MAS-BT 403 to ER collet chuck

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

MAS-BT 403 to ER collet chuck

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	11mm
DCON - Connection Diameter	11.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	43.7mm
BD - Body Diameter	46mm
LB - Body Length	50mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	250001/min
WT - Weight Of Item	0.43kg
OAL - Overall Length	98.4mm
OHX - Maximum Overhang	43.7mm
ORDCODE	A2B14-30 11 050
ADINTMS - Adaptive Interface Machine Direction	M_SKG51_C0300_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CLTERB_C0110_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
CRKS - Connection Retention Knob Thread Size	M12
BMC - Body Material Code	1
CHANGEDATE	2021-12-20 16:58:00.000
STDLET - Standard Letter	AD
STDNO - Standard Number	MAS403-BT
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
