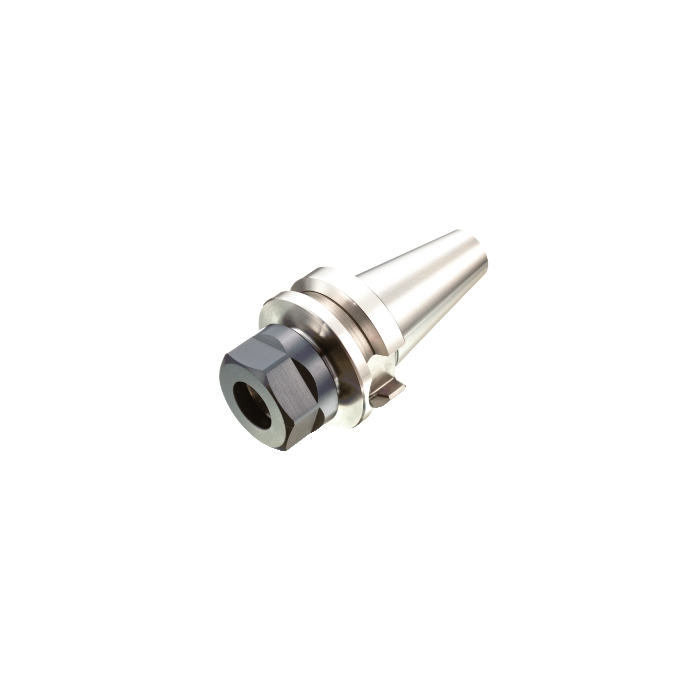

Sandvik Coromant A2B14-40 20 070 MAS-BT 403 to ER collet chuck
Next
Sandvik Coromant A2B14-40 16 070 MAS-BT 403 to ER collet chuck
Previous
![Sandvik Coromant A2B14-40 20 070 MAS-BT 403 to ER collet chuck](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/413972df7/sandvik-coromant-a2b14-40-20-070-mas-bt-403-to-er-collet-chuck.jpg)
![Sandvik Coromant A2B14-40 16 070 MAS-BT 403 to ER collet chuck](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/413950ab2/sandvik-coromant-a2b14-40-16-070-mas-bt-403-to-er-collet-chuck.jpg)
R 1 911,30
inc. vat
In stock
SKU
5721842
MAS-BT 403 to ER collet chuck
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to ER collet chuck
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 16mm |
DCON - Connection Diameter | 17mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 89.74mm |
BD - Body Diameter | 63mm |
LB - Body Length | 100mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 180001/min |
WT - Weight Of Item | 1.246kg |
OAL - Overall Length | 168.4mm |
OHX - Maximum Overhang | 89.74mm |
ORDCODE | A2B14-40 16 100 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG57_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CLTERB_C0160_1 |
CNSC - Coolant Entry Style Code | 7 |
CXSC - Coolant Exit Style Code | 1 |
DCPS - Data Chip Provision Size | 2 |
CRKS - Connection Retention Knob Thread Size | M16 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-20 16:58:00.000 |
STDLET - Standard Letter | AD/B |
STDNO - Standard Number | MAS403-BT |
DPC - Damping Property | False |
DCP - Data Chip Provision | True |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
